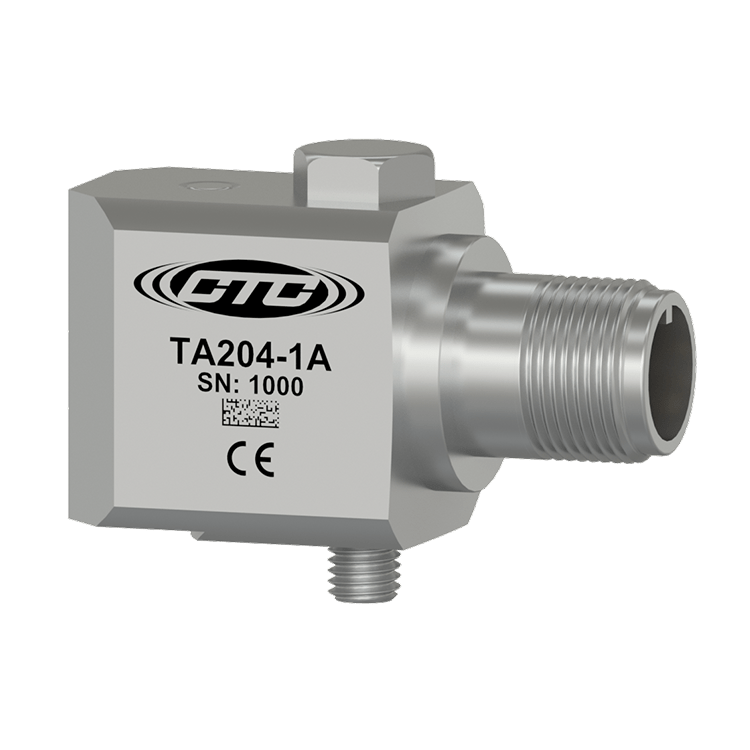

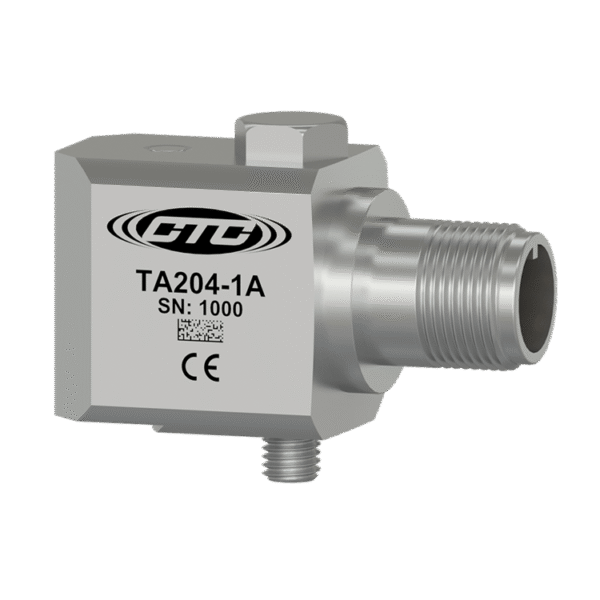

The M/TA204-1A is a high-performance industrial sensor designed for permanent mounting applications, providing simultaneous monitoring of vibration and temperature. This “Side Exit” model is specifically engineered for installations where overhead clearance is restricted, allowing the 3-pin MIL connector to be oriented horizontally. By integrating both temperature (10 mV/°C) and acceleration (100 mV/g) outputs into a single unit, it simplifies cabling requirements and significantly helps in the early detection of bearing defects and thermal anomalies.
| Feature | Specification |
| Sensor Type | Dual Output (Acceleration & Temperature) |
| Exit Type | Side Exit |
| Acceleration Sensitivity | 100 mV/g (±10%) |
| Temperature Sensitivity | 10 mV/°C |
| Frequency Response (±3dB) | 0,5 to 10,000 Hz (30 – 600,000 CPM) |
| Connector Type | 4 pin M12 |
| Dynamic Range | ± 80 g, peak |
| Temperature Range | -40 to 121 °C (-40 to 250 °F) |
| Mounting Hardware | M6x1 Captive Bolt |
