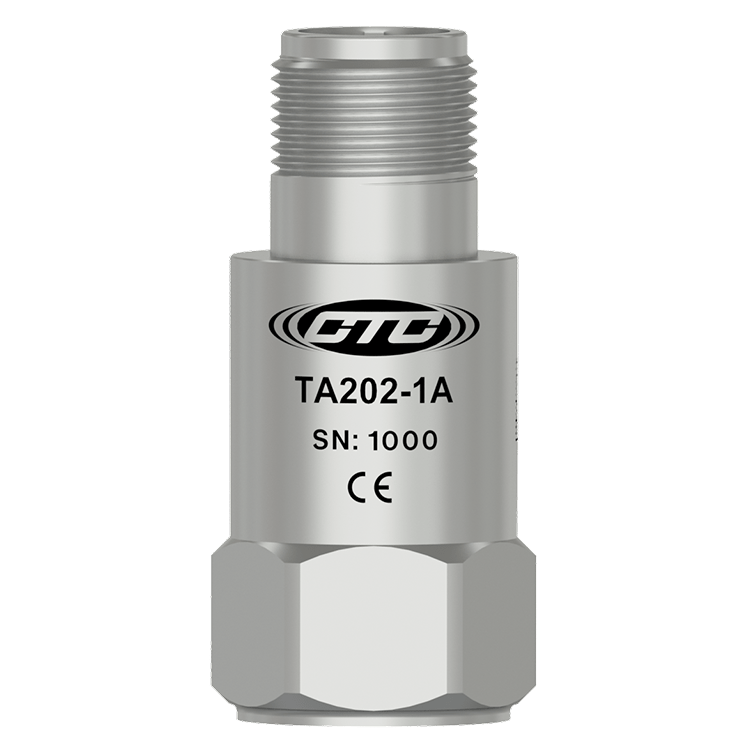

The M/TA202-1A represents a streamlined approach to asset health monitoring by providing two critical data points from a single mounting location. This dual-output capability reduces installation time, cabling costs, and the physical footprint required on the machine housing. The sensor provides a standard 100 mV/g vibration signal, which is the industry benchmark for monitoring general-purpose machinery such as motors, pumps, and fans. Simultaneously, the integrated temperature sensor provides a linear 10 mV/°C output, allowing maintenance teams to correlate thermal trends with vibration changes—a vital combination for early detection of bearing lubrication issues or cooling system failures.
| Feature | Specification |
| Sensor Type | Dual Output (Acceleration & Temperature) |
| Acceleration Sensitivity | 100 mV/g (±10%) |
| Temperature Sensitivity | 10 mV/°C |
| Exit Type | Top Exit |
| Connector | 4 Pin M12 |
| Mounting Hardware | M6x1 Adapter Stud |
| Frequency Range | Standard Industrial (Typically 0.5 Hz to 10 kHz) |
| Construction | Stainless Steel, Hermetically Sealed |
