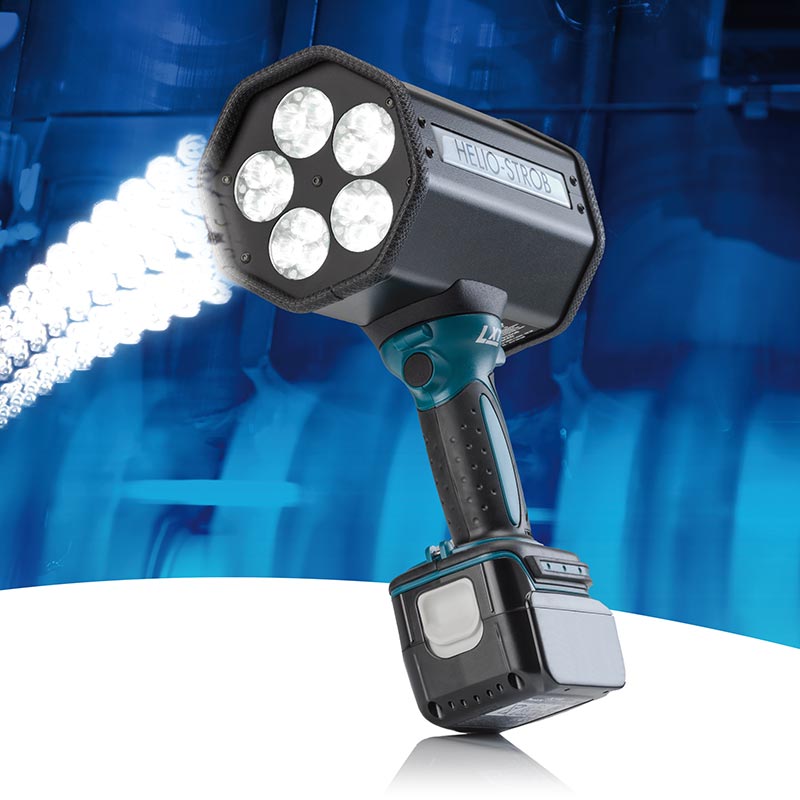

The HELIO-STROB tripLED V2 is a portable, high-performance LED stroboscope engineered for industrial quality control, machine setups, and vibration analysis. Featuring fifteen ultra-bright CREE LEDs coupled with a specialized lens and reflector system, it delivers a constant brightness up to 5500 Lux, creating sharp freeze images of rapid periodic sequences.
The device features an intuitive touch panel paired with a precision twist knob. Advanced functions include an adjustable flash duration (1 to 100 μs) to eliminate blur, electronic phase shifting up to 540°, and a built-in frequency scaler allowing external triggers up to 8000 Hz.
To help you seamlessly deploy advanced strobe diagnostics within your predictive maintenance strategy, I-care engineers are available to provide professional support. Our experts offer technical advice on establishing optimal flash synchronization patterns and interpreting slow-motion visual evidence alongside dynamic vibration waveforms. By utilizing the original HELIO-STROB tripLED V2 and following I-care’s engineering guidance, you can visually confirm mechanical defects and communicate clear root-cause evidence to facility decision-makers.
| Feature | Specification |
| Light Source | 15 CREE high-performance LEDs with lens and reflector system |
| Light Intensity | Max. 5500 Lux (at a distance of 50 cm) |
| Frequency Range | 1 to 840 Hz / 60 to 50,400 min⁻¹ (fpm) |
| Display Resolution | Up to 0.01 Hz / 0.1 min⁻¹ |
| Phase Shifting | 0° to 540° / 0 to 999.99 ms |
| External Trigger Range | Max. 8,000 Hz (with integrated frequency scaler) |
| Slow Motion Function | Beat frequency from -5.00 Hz up to +5.00 Hz |
| Power Supply | Replaceable 14.4 VDC / 4 Ah Lithium-ion battery |
| Battery Life | Approx. 12 hours (at 50 Hz / 50 μs flash duration) |
