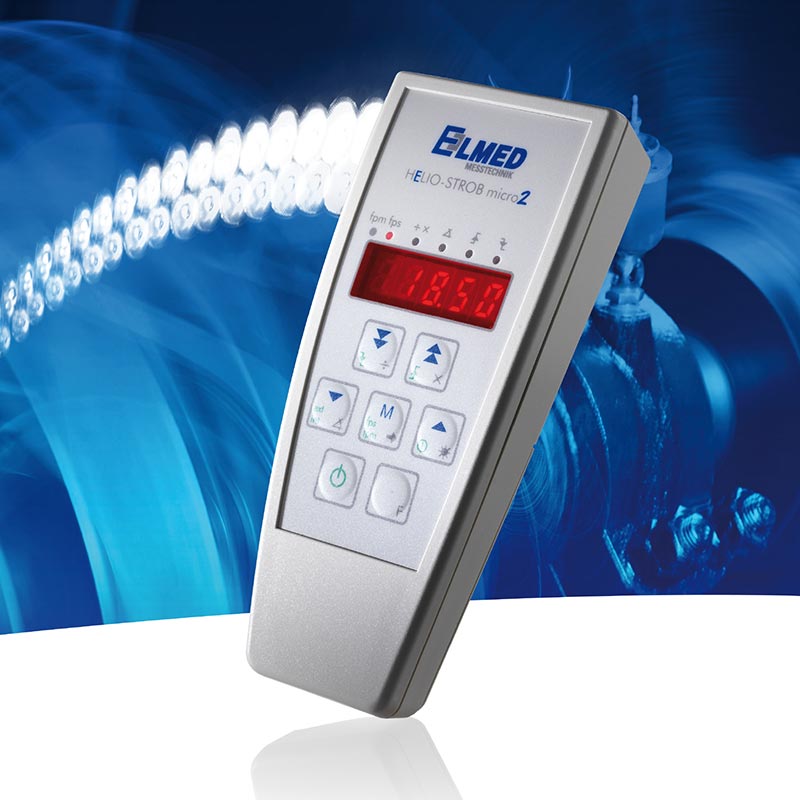

The HELIO-STROB micro2 is an ultra-compact, pocket-sized LED stroboscope designed to produce razor-sharp “freeze images” of high-speed mechanical sequences. Driven by three high-power CREE LEDs and an electronic reflector system, this handheld device achieves an exceptional light efficiency of up to 3800 Lux, bringing flash-tube power to a pocket format.
Weighing just 175 grams, it features an intuitive membrane keypad, a 5-digit digital display, and a 2000 Hz frequency range. Advanced diagnostic capabilities include electronic phase shifting (0° to 360°), adjustable flash durations to eliminate motion blur, and a short-circuit-proof interface for automatic external trigger synchronization.
To help you successfully implement compact stroboscopic inspection on your shop floor, I-care engineers are available to provide professional support. Our experts offer technical advice on optimizing adjustable flash durations to diagnose fine belt tracking and coupling flaws, and can assist in integrating stroboscopic observations into your overall machinery health assessment routes. By utilizing the original HELIO-STROB micro2 and following I-care’s engineering guidance, you gain a highly portable, powerhouse diagnostic tool to confidently isolate the root cause of rotating asset abnormalities.
| Feature | Specification |
| Light Source | 3 ultra-bright CREE LEDs with lens and reflector system |
| Light Intensity | Max. 3800 Lux (at 50 Hz / 20 cm) |
| Frequency Range | 1 to 2000 Hz / 60 to 99,999 min⁻¹ (fpm) |
| Display Resolution | Up to 0.01 Hz / 0.1 min⁻¹ |
| Phase Shifting | 0° to 360° (0.1° resolution) |
| External Trigger | 5 to 30 V (TTL compatible), positive/negative flank |
| Power Supply | 2 x AA alkaline (LR6) or 2 x AA NiMH accumulators |
| Operating Time | Up to 15 hours |
| Dimensions / Weight | 140 x 63 x 38 mm / 175 g |
| Protection Class | IP40 |
