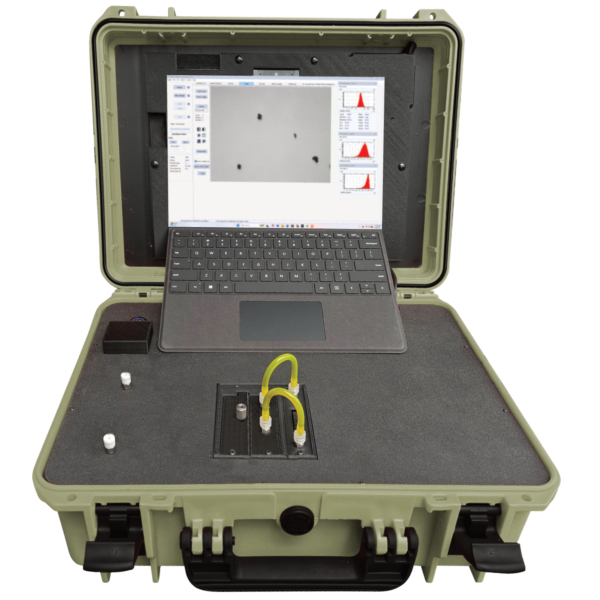

The Particle Pal Raptor provides a complete on-site solution for checking oil cleanliness and condition. Using a high-resolution digital imaging sensor, it accurately counts particles and identifies wear shapes in lubricants up to 420 cSt, completely ignoring air bubbles or oil additives. The system includes an advanced oil condition sensor that tracks changes in the oil’s chemical properties, helping you see when the fluid is degrading. Built into a rugged, IP67-rated waterproof flight case with a large touchscreen interface, it allows technicians to run instant field tests, store data internally, and export reports via USB.
To help you successfully implement portable oil analysis across your facility, I-care engineers are available to provide professional support. Our experts offer technical advice on tracking oil degradation trends, setting correct particle limits for critical assets, and choosing the best sampling points. By combining the Particle Pal Raptor with I-care’s engineering guidance, you can safely extend oil change intervals, protect your gearboxes, and prevent unexpected machine downtime.
| Feature | Specification |
| Counting Technology | CMOS Digital Imaging Particle Counter |
| Oil Condition Sensor | Real-time oil degradation and chemical change tracking |
| Reporting Standards | ISO 4406, NAS 1638, SAE AS4059 |
| Fluid Compatibility | Mineral oils, synthetic lubricants, and diesel fuels |
| Viscosity Range | Up to 420 cSt |
| Particle Size Channels | 4, 6, 14, 21, 38, and 70 microns |
| Wear Shape Detection | Fatigue, sliding, and cutting wear shapes plus fibers |
| Enclosure Rating | IP67 ruggedized industrial flight case |
| Display & Data | 7” color touchscreen with internal memory and USB export |
| Power Supply | Internal rechargeable battery or mains power |
