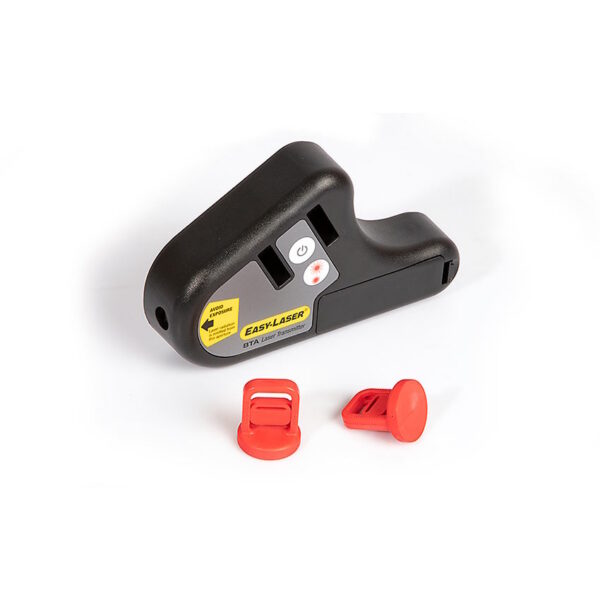

The Easy-Laser D92 BTA is a reliable and easy-to-use tool for aligning belt transmissions and pulleys. It connects to the side of the sheave using strong built-in magnets rather than the belt groove. The system uses a clear laser transmitter that projects a bright line onto two visual targets. It features low and high-power modes to help you measure long distances up to 10 meters. One technician can easily check parallel and angular misalignment on horizontal or vertical machines. This simple, standalone tool works perfectly with V-belts, flat belts, timing belts, and chain drives.
To help you successfully implement precise pulley alignment across your facility, I-care engineers are available to provide professional support. Our experts offer technical advice on establishing custom tolerance targets for high-speed multi-belt configurations, correcting underlying soft-foot conditions, and generating standard digital compliance reports. By combining the Easy-Laser D92 with I-care’s engineering guidance, you can securely reduce uneven belt tension, prevent premature bearing failure, and lower structural vibration levels.
| Feature | Specification |
| Laser Technology | Diode Laser Class 2 |
| Calibration Accuracy | Offset: ±0.2 mm; Angle: ±0.05° |
| Measurement Distance | 0.04 to 10 meters (33 feet) |
| Power Modes | Low Power and High Power modes |
| Sheave Diameters | 60 mm (2.5”) and larger |
| Beam Angle | 60° |
| Mounting Method | Built-in magnetic reference surface |
| Battery Type | 1 x R6 (AA) 1.5 V |
| Operating Time | Up to 12 hours continuously |
| Housing Material | ABS plastics and hard-anodized aluminum |
NOT AVAILABLE IN ALL COUNTRIES
