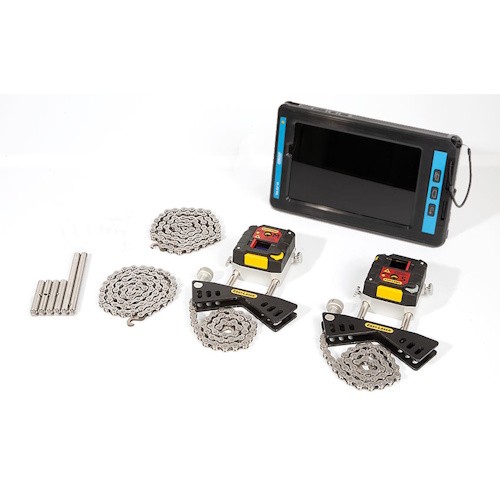

The Easy-Laser XT550 is an advanced, intrinsically safe shaft alignment system purposely built for explosive atmospheres, including Zone 1/21 and Division 1 environments. Combining ATEX/IECEx certification with the premium capabilities of the XT660 line, it utilizes specialized dot laser technology to achieve ultra-precise measurements over long spans up to 20 meters. The system accommodates complex configurations, enabling teams to perform horizontal machine trains, vertical/flange alignments, soft-foot corrections, and foundation base twist assessments safely. The dual TruePSD detectors deliver resolution down to 0.001 mm, operating flawlessly within a heavy-duty, IP66/67 ruggedized framework.
To help you successfully implement precision alignment in hazardous manufacturing zones, I-care engineers are available to provide professional support. Our experts offer technical advice on mitigating machine thermal growth variations, custom tolerance configurations, and executing reliable continuous sweep profiles. By leveraging the Easy-Laser XT550 and following I-care’s engineering guidance, you can maintain rigid equipment reliability standards without compromising strict environmental safety or requiring extensive hot work permits.
| Feature | Specification |
| Laser Technology | Dot Laser Class 2 (Dual beams and PSDs) |
| Detector Type | 1-axis TruePSD 20×20 mm (0.79×0.79”) |
| Measurement Range | Up to 20 meters (66 feet) |
| Measurement Resolution | 0.001 mm (0.05 mils) |
| Ex Classification | II 2 G Ex ib op is IIC T4 Gb (Zone 1/21 & Div 1) |
| Environmental Protection | IP66 and IP67 Dust-, water-, and shockproof |
| Operating Time | Measuring Units: Up to 20 hours continuously |
| Display Unit Option | ecom Tab-Ex® 8” Ex-tablet (Android) |
NOT AVAILABLE IN ALL COUNTRIES
