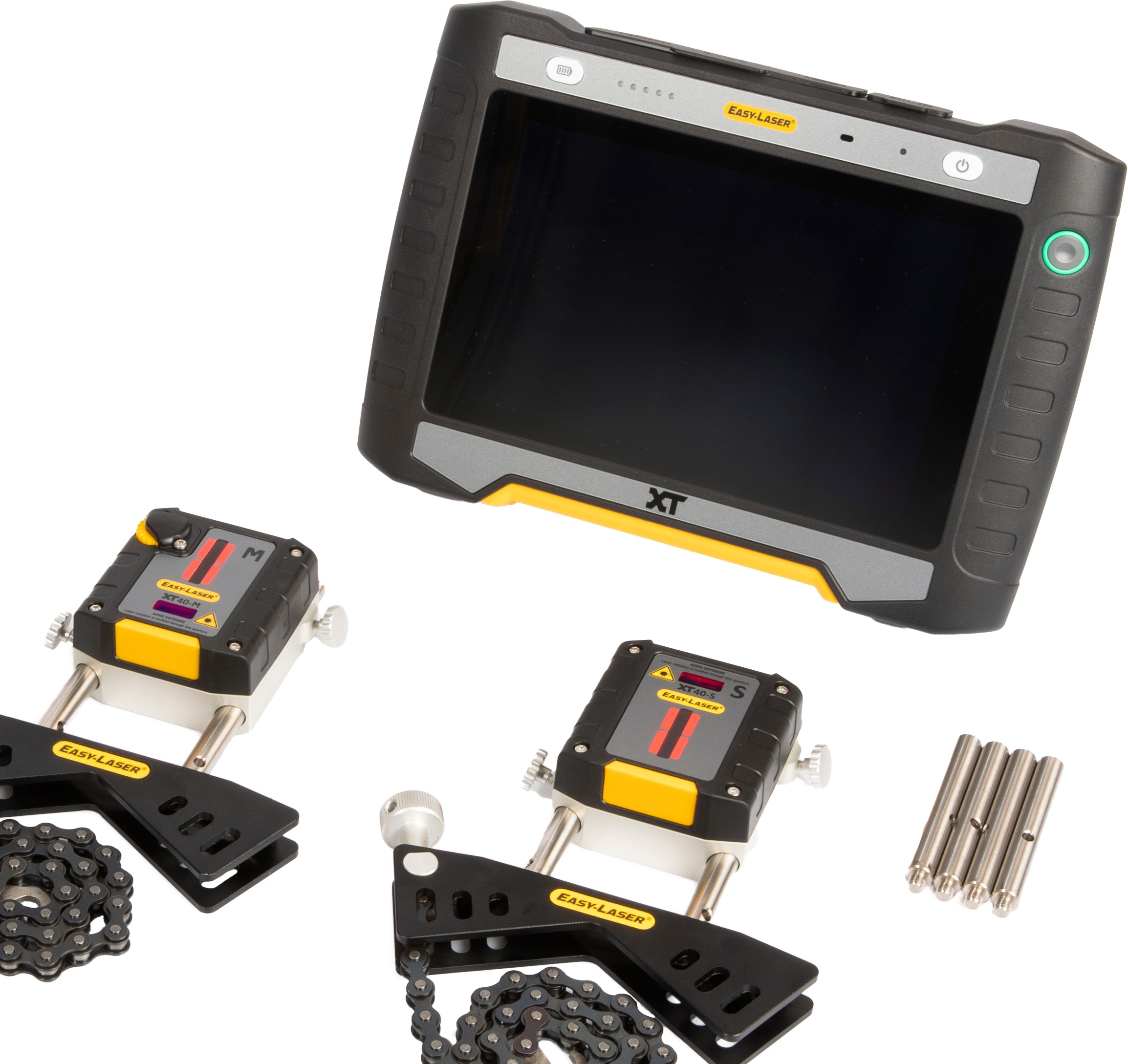

The Easy-Laser XT770 is the most advanced and powerful shaft alignment system within the Generation XT portfolio, combining precision shaft calibration with versatile geometric measurement capabilities. Utilizing 2-axis TruePSD detectors and premium dot laser technology, it delivers sub-micron accuracy over long distances up to 20 meters. The system operates on a cross-platform, license-free application compatible with iOS and Android devices, or the rugged 8-inch XT12 display tablet. It supports complex configurations like machine trains, cardan shafts, and bore alignment, while enabling simultaneous 360° live adjustment alongside advanced functions like thermal growth compensation and baseline flatness monitoring.
To help you successfully implement advanced geometric and shaft alignment on critical machinery, I-care engineers are available to provide professional support. Our experts offer technical advice on interpreting foundation twist diagnostics, setting custom tolerance goals, and analyzing multi-point turbine alignment data. By combining the Easy-Laser XT770 with I-care’s engineering guidance, you can securely reduce component strain, eliminate structural vibration issues, and achieve exceptional machine uptime across your facility.
| Feature | Specification |
| Laser Technology | Dual Dot Laser Class 2 |
| Detector Type | 2-axis TruePSD 20×20 mm (0.79×0.79”) |
| Measurement Range | Up to 20 meters (66 feet) |
| Measurement Accuracy | ±1 µm ±1% |
| Measurement Resolution | 0.001 mm (0.05 mils) |
| Environmental Protection | IP66 and IP67 (Dust, water, and shockproof) |
| Operating Time | Measuring Units: Up to 24 hours / Display Unit: Up to 16 hours |
| Measurement Methods | Continuous Sweep, Multi-Point, EasyTurn, 9-12-3, Uncoupled Sweep |
| Geometric Capabilities | Flatness, Straightness, Base Twist (with Geo Kit accessories) |
NOT AVAILABLE IN ALL COUNTRIES
