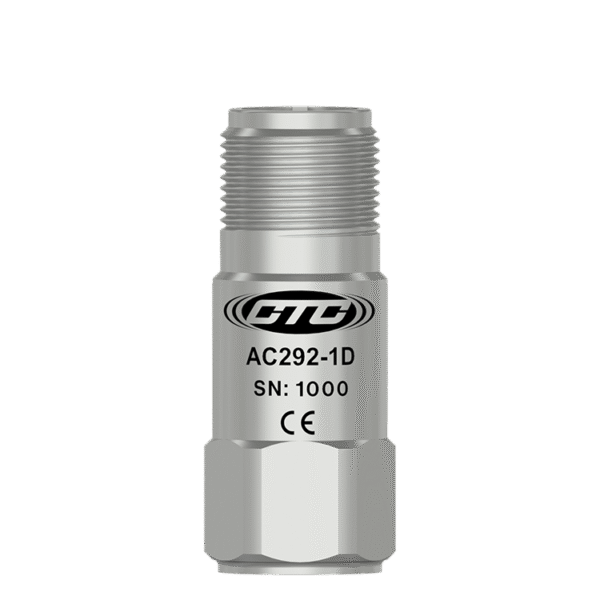

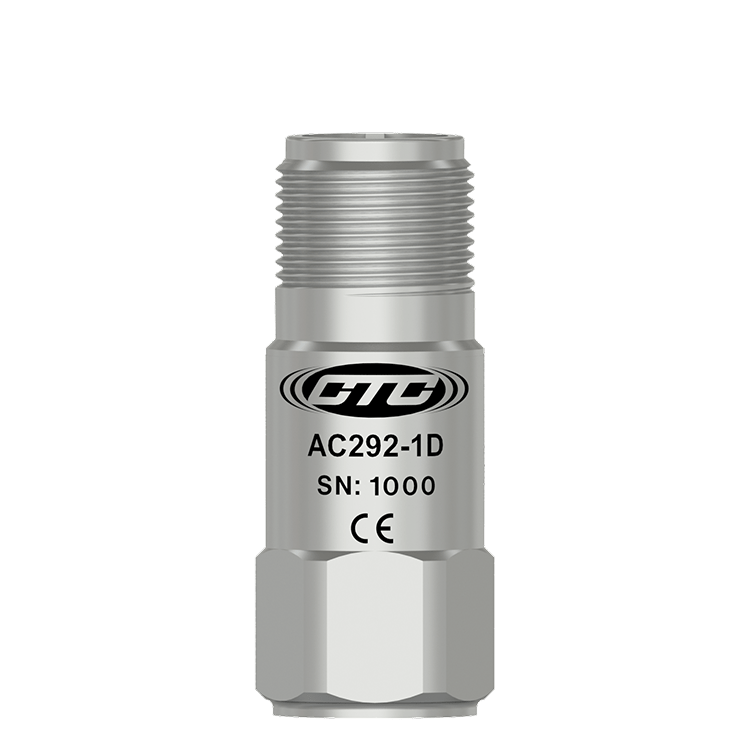

The AC292 is a premium industrial accelerometer designed for reliability professionals who require high-precision data in space-constrained environments. As a “Premium” compact sensor, it features a tighter sensitivity tolerance of ±5% and an extended frequency response ranging from 0.3 Hz to 15,000 Hz. This wide range makes it exceptional at detecting both very low-speed structural vibrations and high-frequency bearing or gear mesh defects that standard sensors might miss.
Its compact, top-exit design allows for installation on small motors, high-speed spindles, and gearboxes where clearance is limited. Built with a 316L stainless steel body and a fully welded, hermetic seal, the AC292 is designed to withstand the harshest industrial conditions, including constant exposure to moisture, oils, and chemicals. Furthermore, it boasts superior RF immunity and low-noise electronics, ensuring that the vibration signal remains clean even in environments with high electromagnetic interference.
| Feature | Specification |
| Sensitivity | 100 mV/g (±5%) |
| Frequency Response | 0.3 Hz to 15,000 Hz (±3 dB) |
| Temperature Range | -50 °C to 121 °C |
| Sealing | Welded, Hermetic |
| Connection Type | Top Exit, 2-Pin MIL-C-5015 |
| Material | 316L Stainless Steel |
| Dynamic Range | ±80 g, peak |
