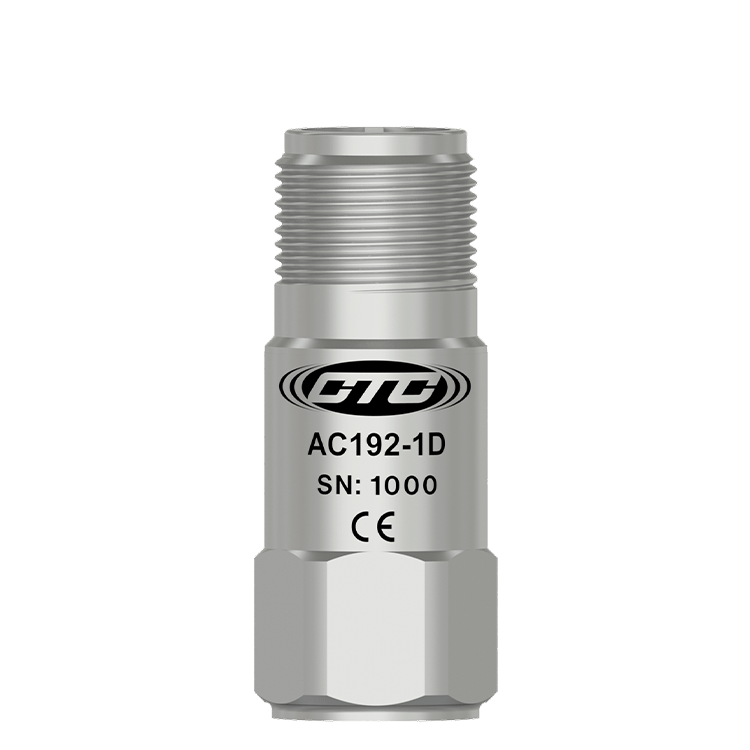

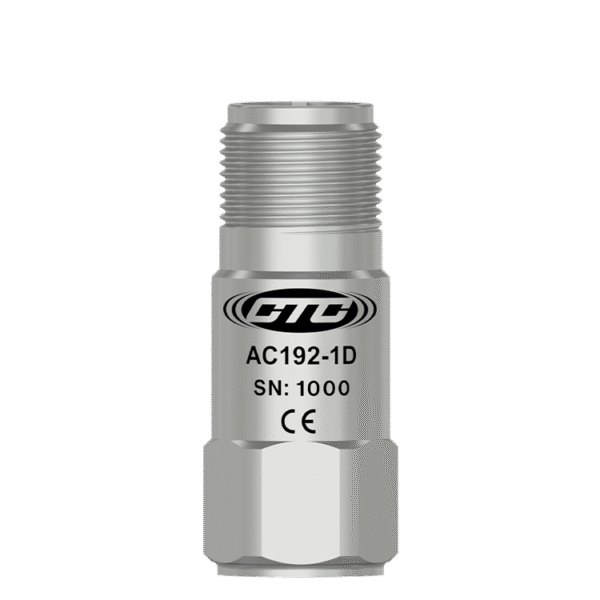

The AC192 is a compact and durable industrial accelerometer specifically engineered for high-quality data collection where mounting space is restricted. Its top-exit design and reduced footprint make it a perfect fit for smaller motors, gearboxes, and pumps. Despite its smaller size, it offers a broad frequency response from 0.4 Hz to 13,000 Hz, ensuring it can accurately capture everything from low-frequency structural movements to high-frequency gear mesh signals.
Constructed from robust 316L stainless steel, the AC192 features a fully welded, hermetic seal. This ensures the sensor remains operational in the most challenging industrial environments, protected against the ingress of moisture, oils, and chemical contaminants. The sensor is also built with excellent RF immunity and low-noise electronics, preventing electrical interference from distorting your critical vibration data. Whether integrated into a permanent monitoring system or used for periodic data collection, the AC192 provides the clear, reliable signal necessary for effective machine health analysis.
| Feature | Specification |
| Sensitivity | 100 mV/g (±10%) |
| Frequency Response | 0.4 Hz to 13,000 Hz (±3 dB) |
| Temperature Range | -50 °C to 121 °C |
| Sealing | Welded, Hermetic |
| Connection Type | Top Exit, 2-Pin MIL-C-5015 |
| Material | 316L Stainless Steel |
| Dynamic Range | ±80 g, peak |
