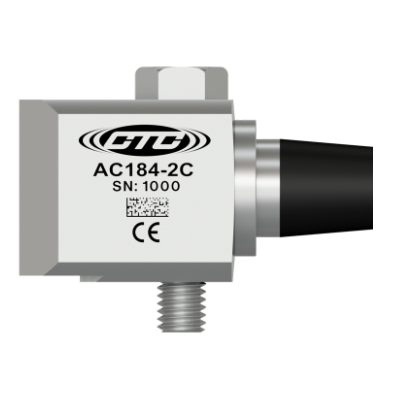

The AC184-2C is an ideal solution for machinery with metric mounting requirements, as it comes supplied with a captive M8x1.25 mounting bolt. This configuration utilizes the CB103 molded integral cable, which provides a permanent, waterproof (IP68) connection directly to the sensor body. The cable terminates in a “blunt cut” (Z), which is perfect for technicians who need to hard-wire the sensor directly into a junction box or wireless transmitter.
| Feature | Specification |
| Sensitivity | 100 mV/g (±10%) |
| Exit Type | Side Exit |
| Mounting Hardware | M8x1.25 Captive Bolt |
| Cabling Option | Molded Integral Cable (CB103) |
| Cable Termination | Z: Blunt Cut (Flying Leads) |
| Frequency Response (±3dB) | 0,5 to 10,000 Hz (30 to 600,000 CPM) |
| Dynamic Range | ± 80 g, peak |
| Sealing | Welded, Hermetic (IP68) |
| Case Material | 316L Stainless Steel |
