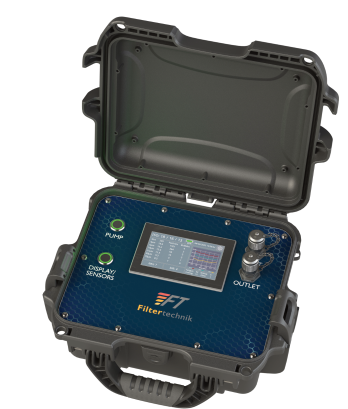

The Particle Pal Plus FS9V4 provides fast, on-site oil and fuel cleanliness analysis. Unlike standard laser counters, its digital imaging core is entirely unaffected by anti-foaming additives or phantom particles. It accurately counts micro-contaminants across multiple sizing ranges and automatically subtracts air bubbles from the final rating. The built-in software categorizes particles larger than 20 microns into cutting, sliding, and fatigue wear types to pinpoint the root cause of component damage. Featuring a touchscreen interface and internal data logging, it easily extracts records via USB or instantly generates on-screen test reports via QR codes. To help you successfully implement compact oil analysis on your shAdd new productop floor, I-care engineers are available to provide professional support. Our experts offer technical advice on establishing alarm thresholds for different gearboxes, choosing the correct sampling ports, and trending contamination data. By utilizing the original Particle Pal Plus and following I-care’s engineering guidance, you gain a highly portable field instrument to prevent unexpected breakdowns and extend the life of your lubricants.
| Feature | Specification |
| Counting Technology | CMOS Digital Imaging Particle Counter |
| Reporting Standards | ISO 4406, NAS 1638, SAE AS4059 |
| Micron Size Channels | 4, 6, 14, 21, 38, and 70 microns |
| Wear Shape Categorization | Fatigue wear, sliding wear, cutting wear, and fibers |
| Fluid Compatibility | Mineral, synthetic, organic oils, and diesel fuels |
| Viscosity Limit (Standard) | Up to 320 cSt (High Viscosity models up to 2400 cSt available) |
| Interference Protection | Automated air bubble and water droplet elimination |
| Display & Connectivity | 4.3” LCD touchscreen, USB port, QR code generation |
| Data Memory | Internal logging up to 500 lines of data |
| Operating Modes | Bottle sampling, tank sampling, live lines up to 350 bar |
| Battery Life | Rechargeable Lithium battery (Up to 10 hours) |
