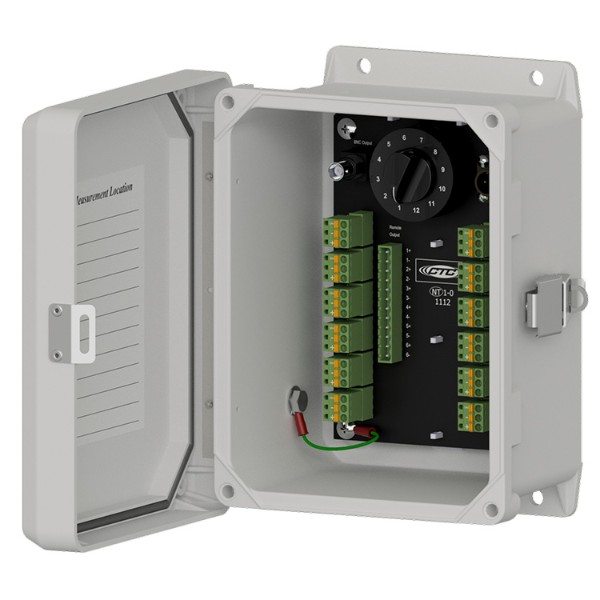

The SB102 Standard Switch Box is a high-performance solution designed to streamline the collection of vibration data from multiple machines. Instead of connecting to each sensor individually, this box allows you to terminate up to 12 single-axis accelerometers in one centralized hub. By simply turning the internal rotary switch, a technician can toggle between different sensor channels and take readings instantly from the integrated BNC or 2-pin MIL-style output ports.
This enclosure is built for longevity in harsh industrial environments. Made from fiberglass reinforced polyester, it is highly resistant to corrosion, chemicals, and hose-directed fluids, boasting an IP66 (NEMA 4X) rating. The SB102 also includes advanced features like online expansion jacks, which allow for continuous live monitoring if needed. For maximum signal integrity, all channels are internally earth-grounded to minimize electrical noise. The secure snap-latch door keeps the sensitive electronics protected from dust and moisture when not in use.
| Feature | Specification |
| Type | Single Axis Vibration Switch Box |
| Enclosure Material | Fiberglass Reinforced Polyester |
| Sensor Inputs | 4 to 12 Channels |
| Output Connectors | Switched BNC and 2-Pin MIL-style |
| Protection Rating | NEMA 4X / IP66 |
| Temperature Range | -50 °C to 82 °C |
| Terminal Blocks | Spring Cage or Screw Terminals |
| Expansion | Built-in Online Expansion Jacks |
