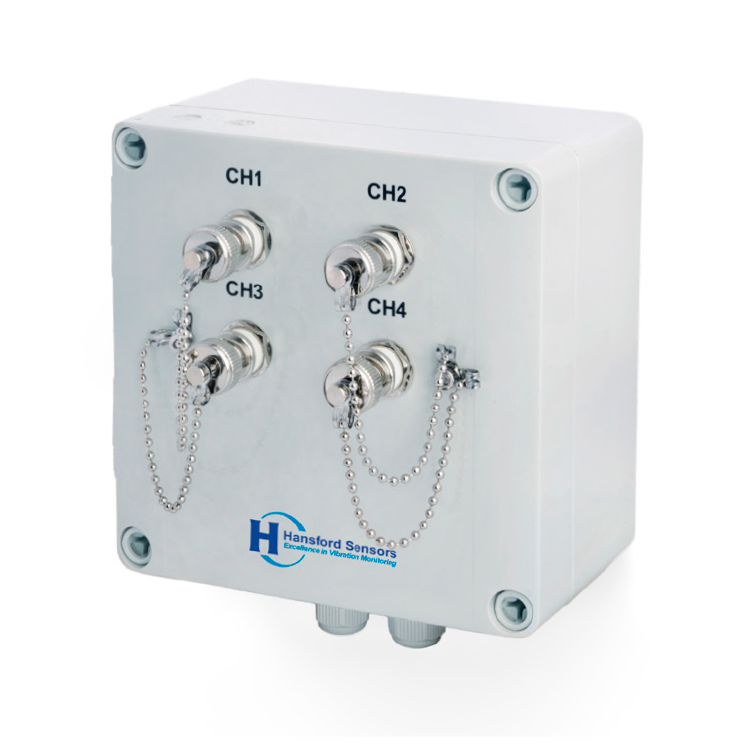

The HS-BE BNC Enclosure is an ideal “entry-level” solution for industrial sites looking to organize their vibration monitoring points without the high cost of metal housings. Built from lightweight yet durable polycarbonate, this box serves as a common termination point for 2 to 6 remote accelerometers. By bringing sensor signals to a single, accessible location, it significantly improves safety and efficiency, allowing technicians to take readings via portable data collectors without approaching rotating machinery.
Designed for ease of installation, the HS-BE comes with M12 glands already supplied and fitted to the housing, accommodating cables with a diameter between 3.5 mm and 7 mm. Inside, the box features PCB-mounted screw terminals that ensure a secure and stable connection for your sensor wiring. With an IP55 protection rating, it is shielded against dust ingress and low-pressure water splashes, making it suitable for standard indoor factory environments such as air handling units, motors, and pump rooms.
| Feature | Specification |
| Type | Low-Cost Multi-Sensor Connection Box |
| Enclosure Material | Polycarbonate |
| Channels | 2 to 6 Channels |
| Output Connector | BNC as standard (TNC or 2-pin MS options) |
| Protection Rating | IP55 / NEMA 12 |
| Termination | PCB Mounted Screw Terminals |
| Cable Entry | M12 Glands (supplied and fitted) |
| Cable Compatibility | ø 3.5 mm to 7 mm |
