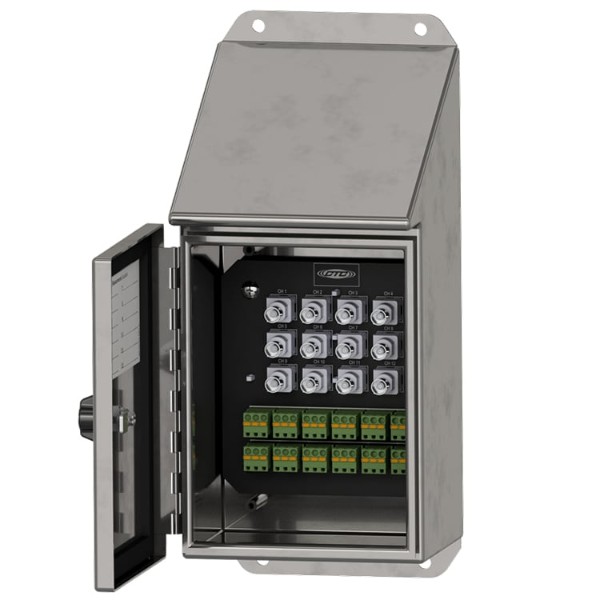

The MX262 Sloped Top MAXX Box is an advanced termination solution designed for the most demanding industrial environments, such as mining, cement, and paper production. The unique sloped top design is a critical feature that prevents the accumulation of dust, dirt, and moisture on top of the enclosure, reducing the risk of corrosion and simplifying cleaning. This box centralizes the wiring of up to 12 remotely installed accelerometers, allowing for efficient data collection through individual BNC ports located safely behind the door.
Constructed from high-grade stainless steel, the MX262 is rated NEMA 4X (IP66), making it completely resistant to hose-directed fluids, rain, and harsh chemicals. Inside, the box is internally earth-grounded to ensure maximum noise reduction and signal clarity. Each sensor channel is connected via high-quality terminal blocks, providing a secure interface for positive, negative, and shield wires. This organized setup allows technicians to collect high-quality vibration data without exposing themselves to rotating machinery or hazardous areas.
| Feature | Specification |
| Type | Single Axis Sloped Top BNC Connection Box |
| Enclosure Material | Stainless Steel |
| Sensor Inputs | 1 to 12 Single Output Sensors |
| Output Type | Individual Enclosed BNC Connectors |
| Protection Rating | NEMA 4X / IP66 |
| Temperature Range | -50 °C to 82 °C |
| Dimensions | 159 mm x 349 mm x 155 mm |
| Terminal Type | Spring Cage or Screw Terminal Blocks |
