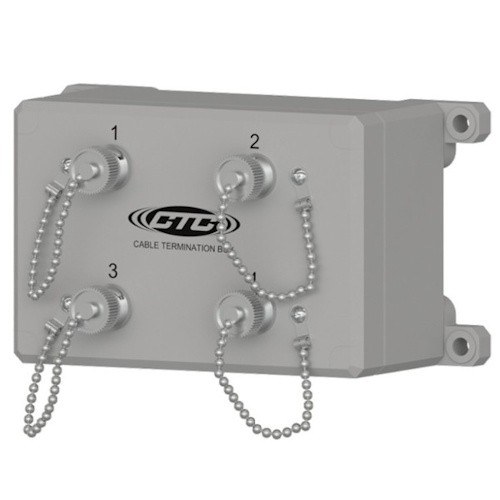

The CT101 is an efficient and economical solution for managing vibration sensor data. Designed to convert internal sensor wiring into easily accessible BNC outputs, this box allows maintenance technicians to connect portable data collectors quickly. Its small form factor makes it ideal for applications with significant space constraints, while the polycarbonate enclosure offers a lightweight yet durable housing for your critical connections.
Durability is a key feature of the CT101. Each BNC output is protected by a heavy-duty metal cap, ensuring the connectors remain clean and functional even in dusty or wet environments. Rated at IP64, the box is sealed against dust and splashing water, and it can operate in extreme temperatures ranging from -58 °F to 180 °F. Whether you are monitoring one sensor or four, the CT101 provides a reliable, professional termination point that simplifies routine machinery inspections.
| Feature | Specification |
| Type | Single Axis Cable Termination Box |
| Enclosure Material | Polycarbonate |
| Sensor Inputs | 1 to 4 Channels |
| Output Connector | BNC with attached metal caps |
| Protection Rating | IP64 |
| Temperature Range | -58 °F to 180 °F (-50 °C to 82 °C) |
| Grounding | Optional factory-installed ground lug |
