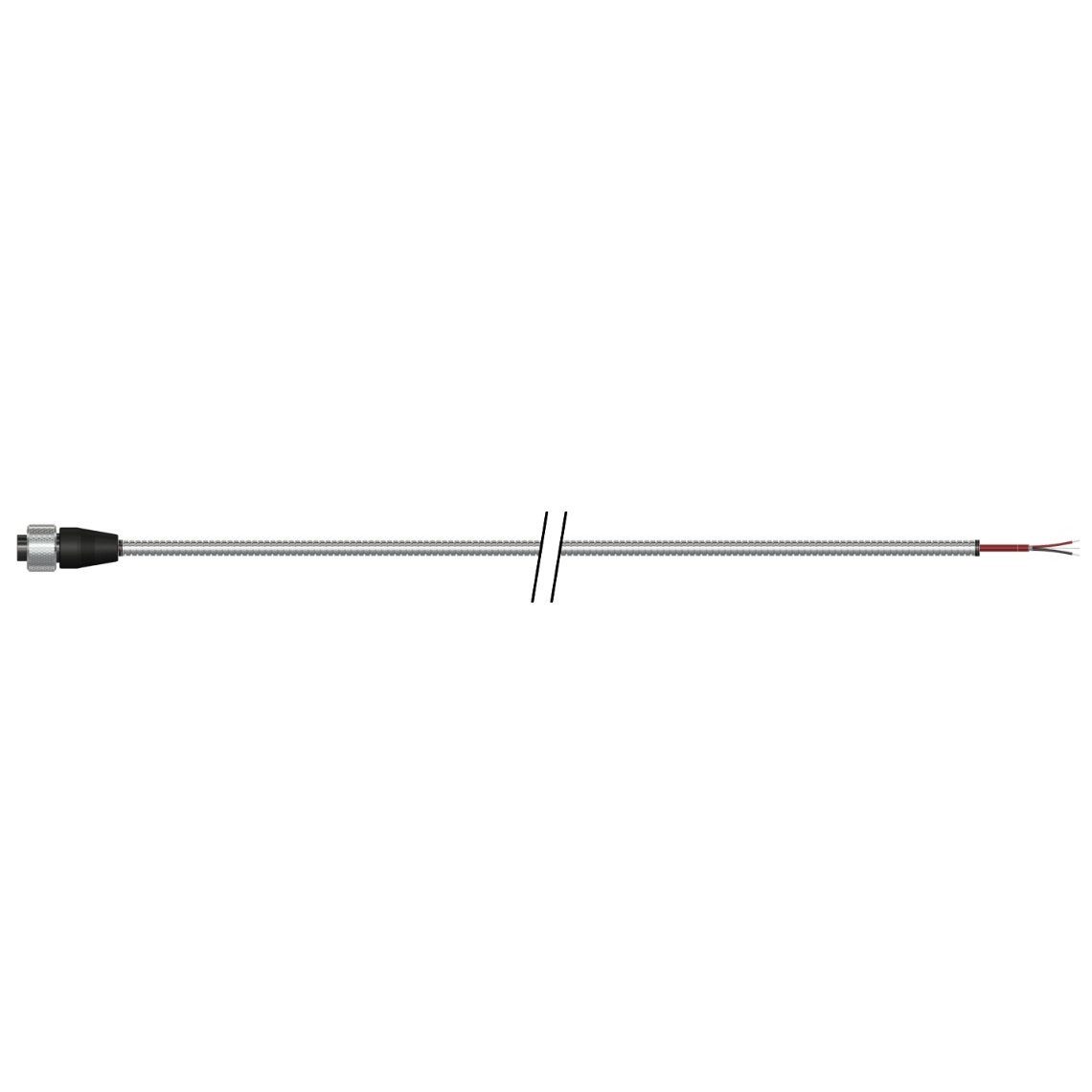

The CB206 Series armor-protected cable delivers high-durability, low-noise signal transmission for industrial accelerometers in permanently mounted monitoring applications. Featuring an AWG 22 twisted pair configuration with foil shielding and a dedicated drain wire, it effectively guards critical data against electromagnetic interference on the plant floor. The core cable is wrapped in a lightweight red Fluorinated Ethylene Propylene (FEP) jacket, which is further shielded by a rugged stainless steel outer armor layer. This heavy-duty armored design provides excellent resistance against physical impacts, crushing forces, abrasion, moisture, and extreme temperatures, ensuring long-term operational survival and reliable sensor connectivity on heavy machinery.
| Feature | Specification |
| Product Model | CB206 Series |
| Conductor Quantity | 2-Conductor, Twisted Pair |
| Wire Gauge | 22 AWG |
| Shielding Method | Foil with Drain Wire |
| Jacket & Protection | Lightweight Red FEP with Stainless Steel Outer Armor |
| Armor Outside Diameter (OD) | 6.9 mm (0.27 in) |
| Core Cable Diameter | 3.0 mm (0.12 in) |
| Temperature Range | -70°C to 200°C (-94°F to 392°F) |
| Nominal Capacitance | 35 pF/ft (Conductor to Shield) |
| Voltage Rating | 1000 VDC |
| Primary Application | Permanent mount vibration sensor monitoring in abusive conditions |
