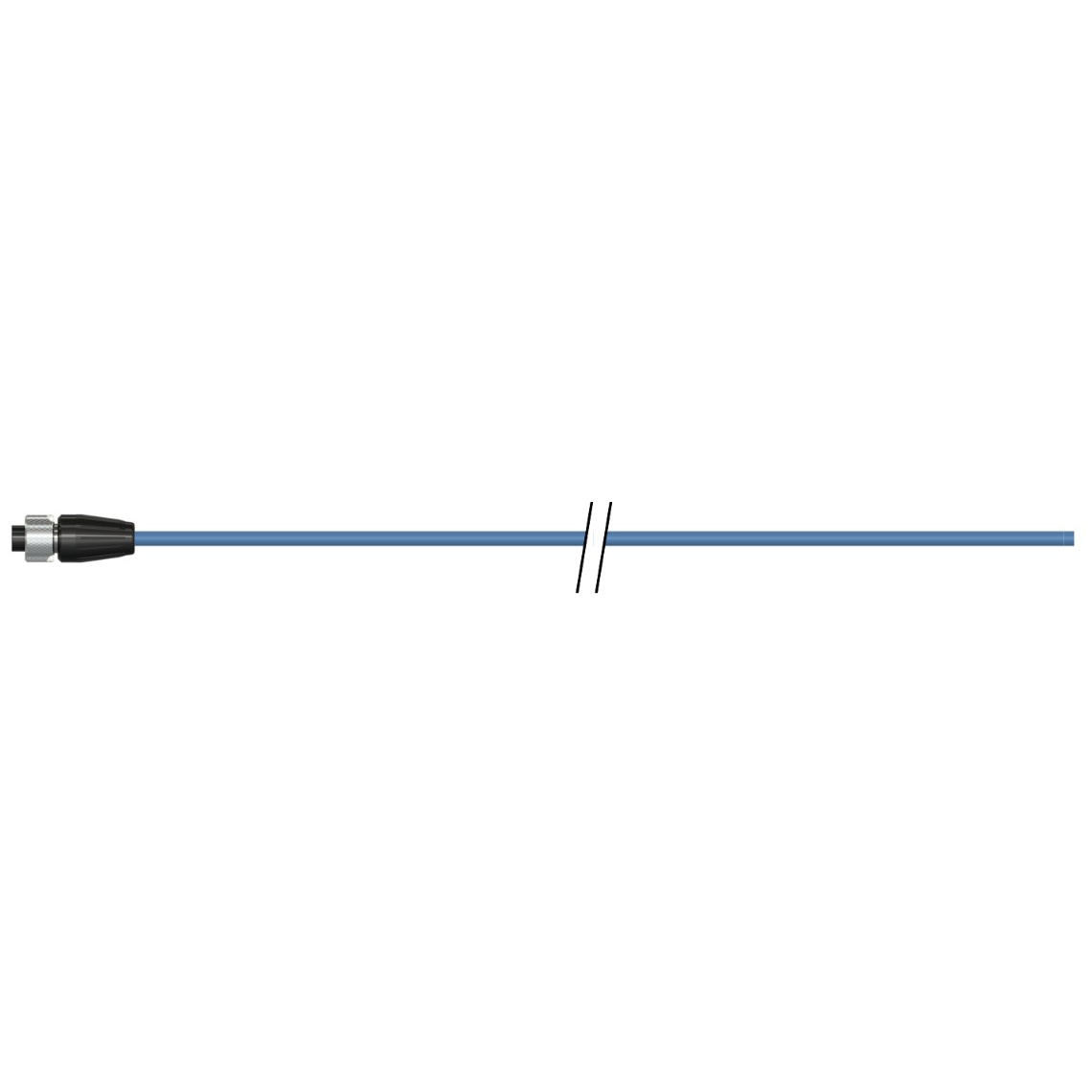

The CB190 Series cable provides reliable, low-noise signal transmission for industrial accelerometers operating in hazardous locations. Built with a 20 AWG twisted, shielded pair configuration and a dedicated drain wire, it delivers excellent protection against electromagnetic interference (EMI) on long cable runs. The cable is wrapped in a robust, distinctive blue Thermoplastic Elastomer (TPE) jacket that provides outstanding durability and chemical resistance for permanent machinery monitoring installations. It is fully certified for Intrinsically Safe and Class I, Division 2 / Zone 2 applications, making it a safe choice for critical plant environments.
| Feature | Specification |
| Product Model | CB190 Series |
| Hazardous Area Ratings | Class I, Division 2 / Zone 2 Approved (Intrinsically Safe for T4) |
| Conductor Configuration | 2-Conductor, Twisted Shielded Pair |
| Wire Gauge | 20 AWG |
| Jacket Material | Blue Thermoplastic Elastomer (TPE) |
| Shielding Method | Braided Shield with Drain Wire |
| Cable Outer Diameter | 6.4 mm (0.25 in) |
| Temperature Range | -30°C to 105°C (-22°F to 221°F) |
| Voltage & UL Rating | 1000 VDC / TYPE PLTC, 105C 300V |
| Flame Resistance | UL 1685 Vertical Tray |
| Primary Application | Permanent vibration sensor monitoring in classified hazardous locations |
