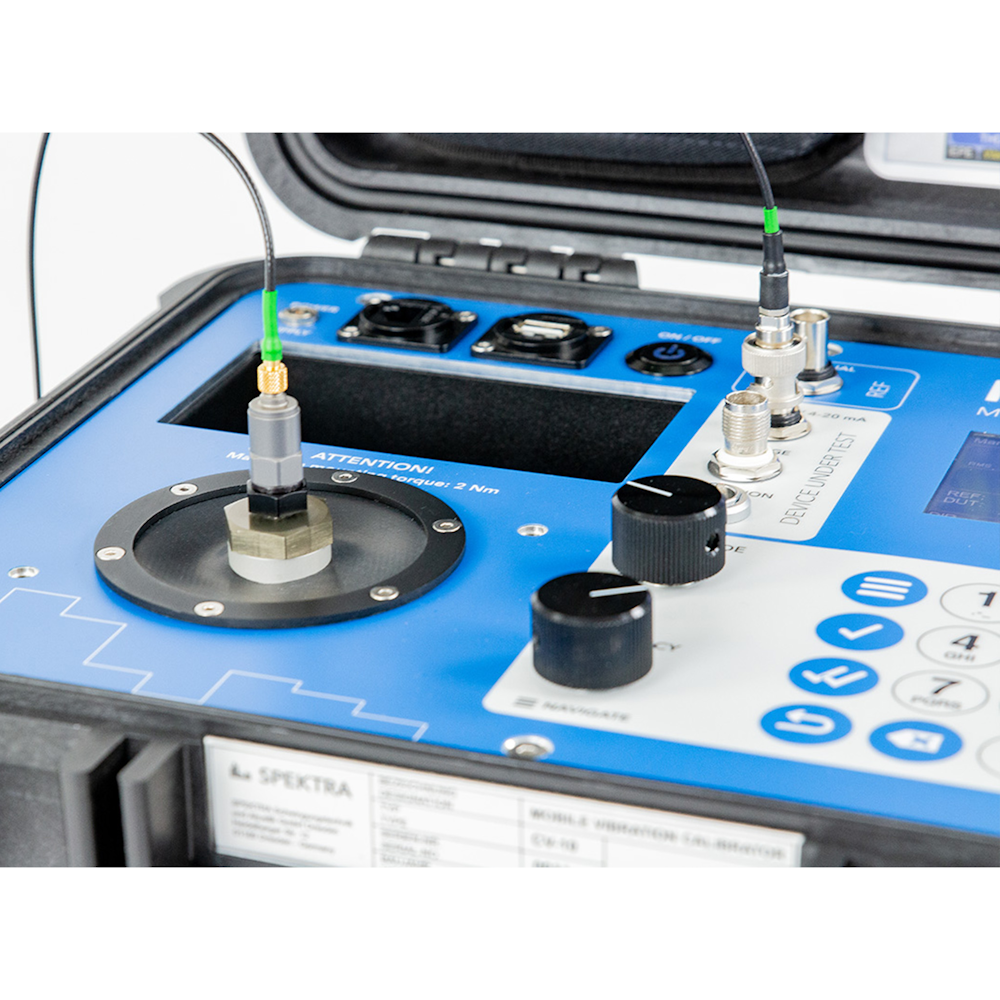

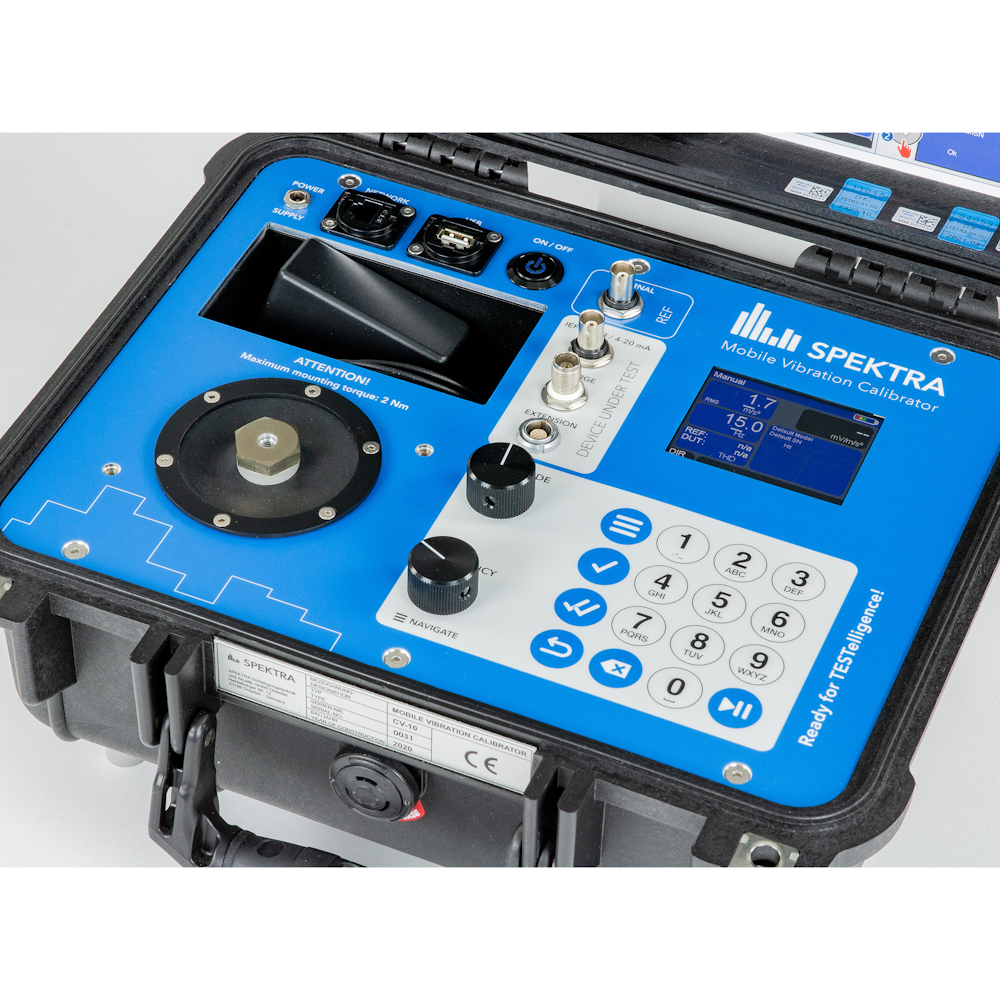

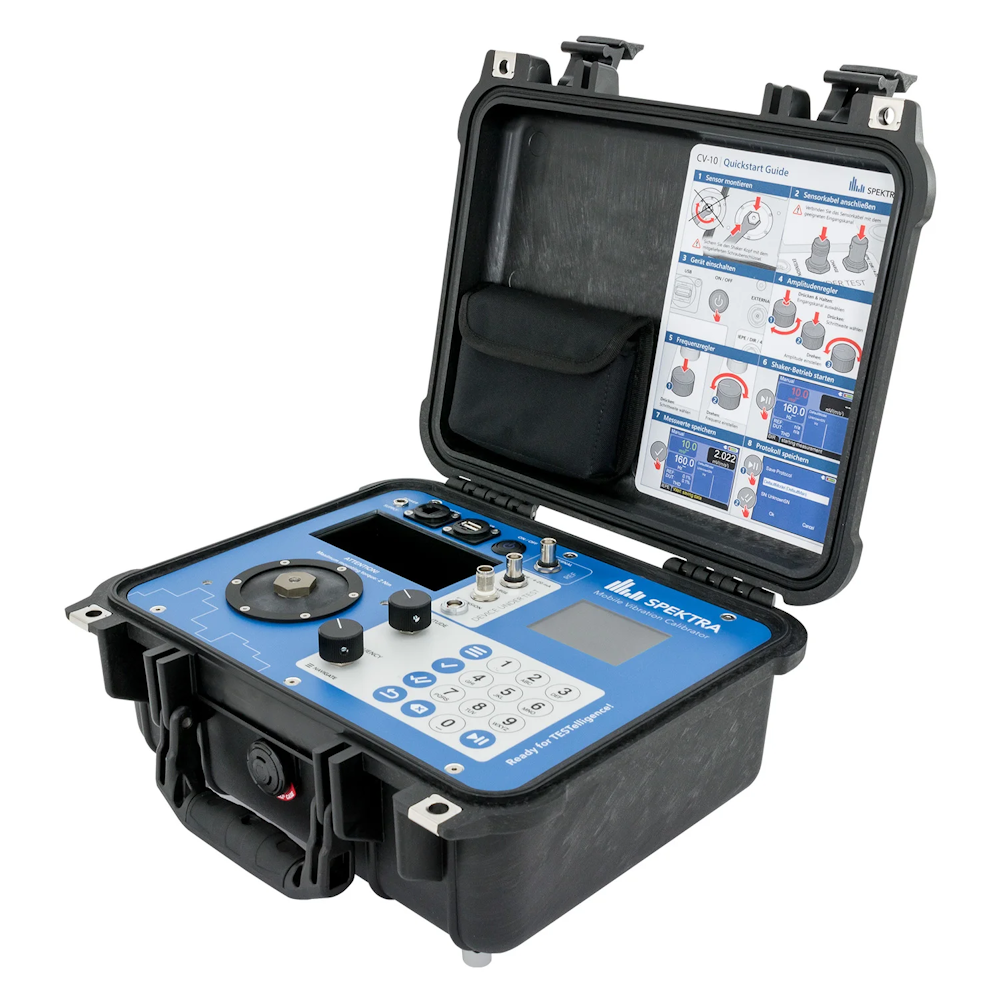

The SPEKTRA CV-10 is an advanced mobile calibration system designed to bring laboratory-grade accuracy directly to the industrial field. This all-in-one solution allows reliability teams to test and calibrate accelerometers, velocity sensors, and proximity probes without removing them from the site. With a broad frequency range of 5 Hz to 10,000 Hz and the ability to support sensor masses up to 900 g, the CV-10 is capable of verifying a wide variety of industrial vibration hardware. Its integrated signal conditioners support multiple sensor types, including IEPE, charge, and 4-20 mA loop-powered sensors.

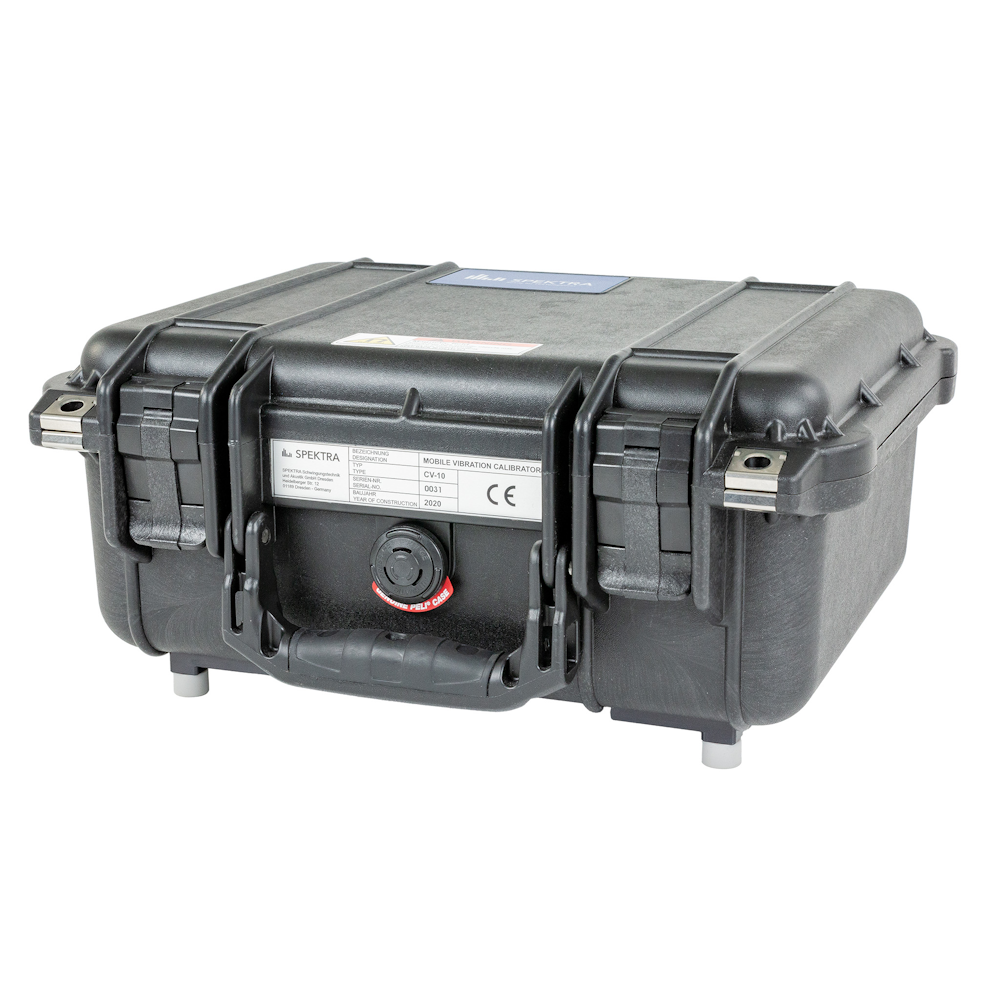

Engineered for the demands of field work, the CV-10 is housed in a rugged, shock-resistant case that is also resistant to dust and splashes. It weighs only 9 kg and can operate for up to 10 hours on internal battery power, making it ideal for large plants or remote facilities. The system is traceable to national standards (NIST and PTB), ensuring that all on-site calibrations are legally and technically compliant. With various operating modes—including manual, sweep, and automated profiles—the CV-10 streamlines the calibration process and minimizes machine downtime.
| Feature | Specification |
| Frequency Range | 5 Hz to 10,000 Hz |
| Max. Amplitude | 200 m/s² |
| Max. Displacement | 5 mm (peak-to-peak) |
| Max. DUT Mass | 900 g |
| Signal Conditioners | IEPE, Charge, Voltage, 4-20 mA |
| Battery Operation | Up to 10 hours |
| Weight | 9 kg |
| Case Rating | Shock-resistant, splash and dust resistant |
| Traceability | NIST and PTB |
