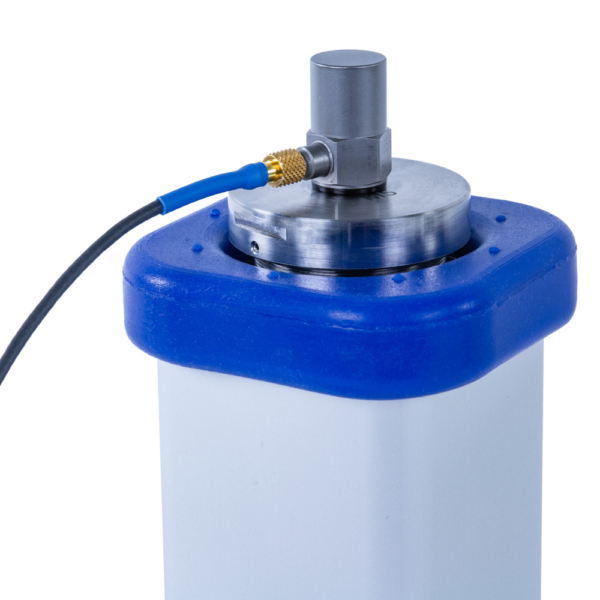

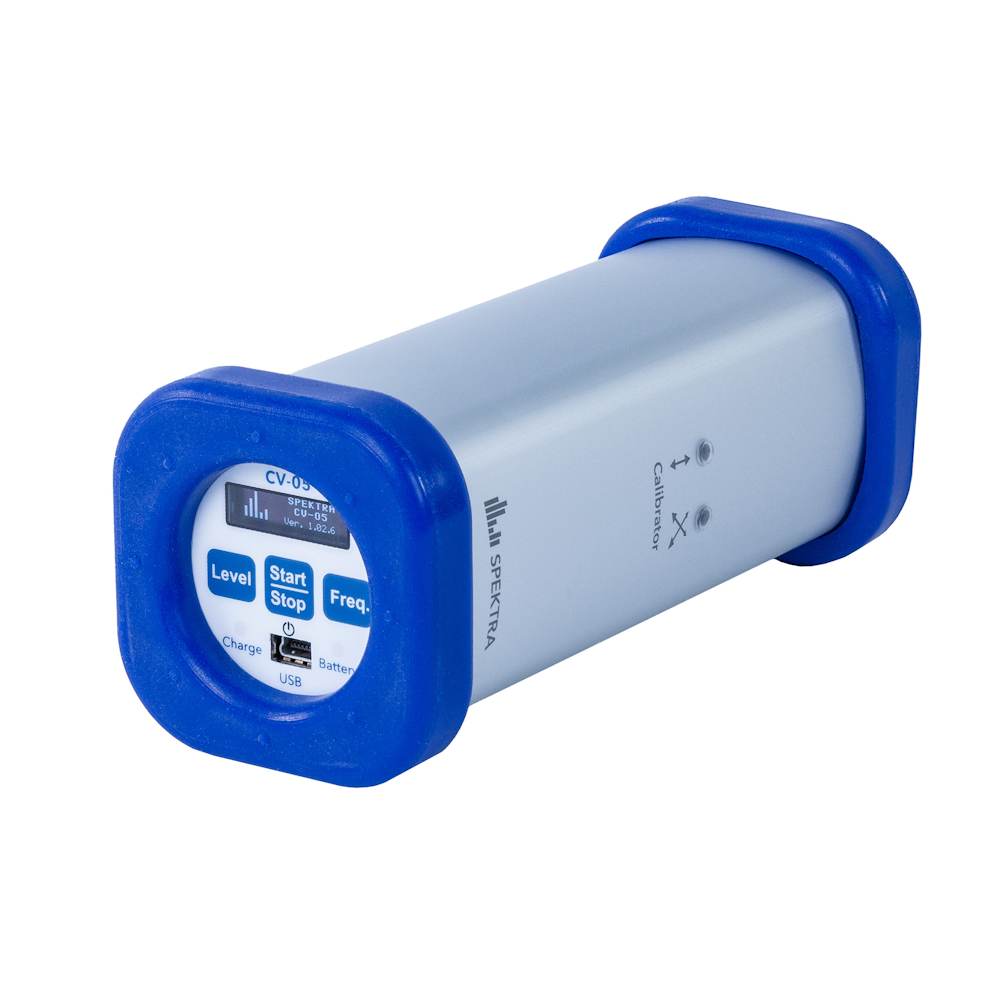

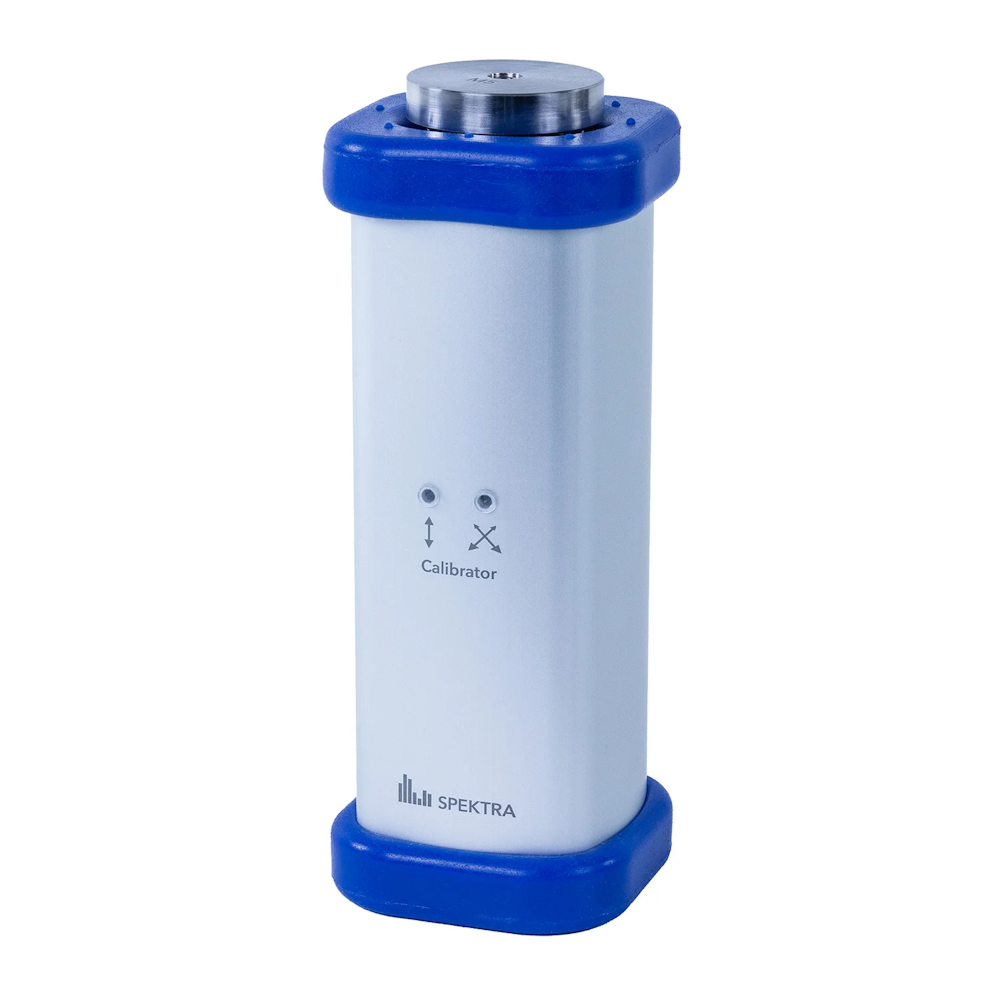

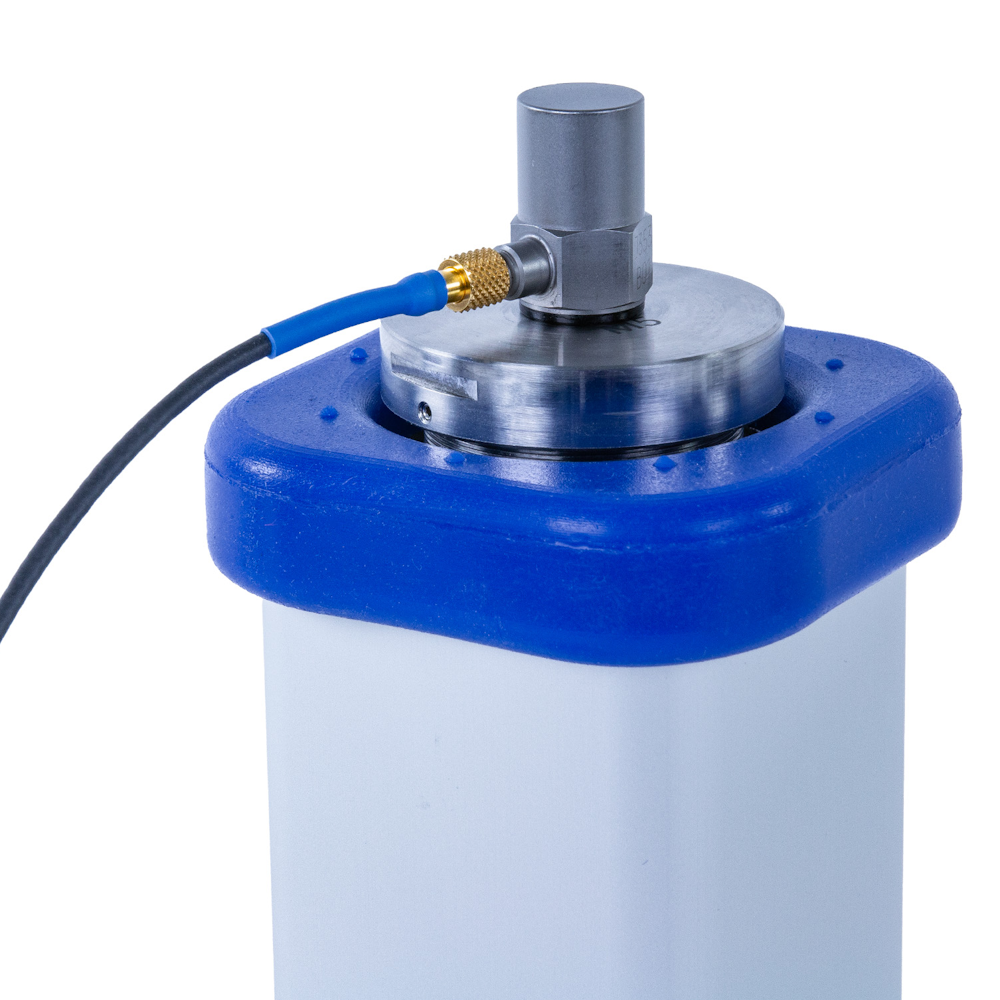

The SPEKTRA CV-05 is a high-precision, battery-powered vibration calibrator designed for the mobile verification of sensors and measurement chains. It is an essential tool for reliability technicians who need to ensure the accuracy of their vibration meters and accelerometers in the field. With its user-friendly interface and integrated reference sensor, the CV-05 allows for the quick setting of various amplitudes across acceleration, velocity, and displacement. It is specifically designed to meet the requirements of ISO 8041, making it ideal for checking human vibration measuring devices.

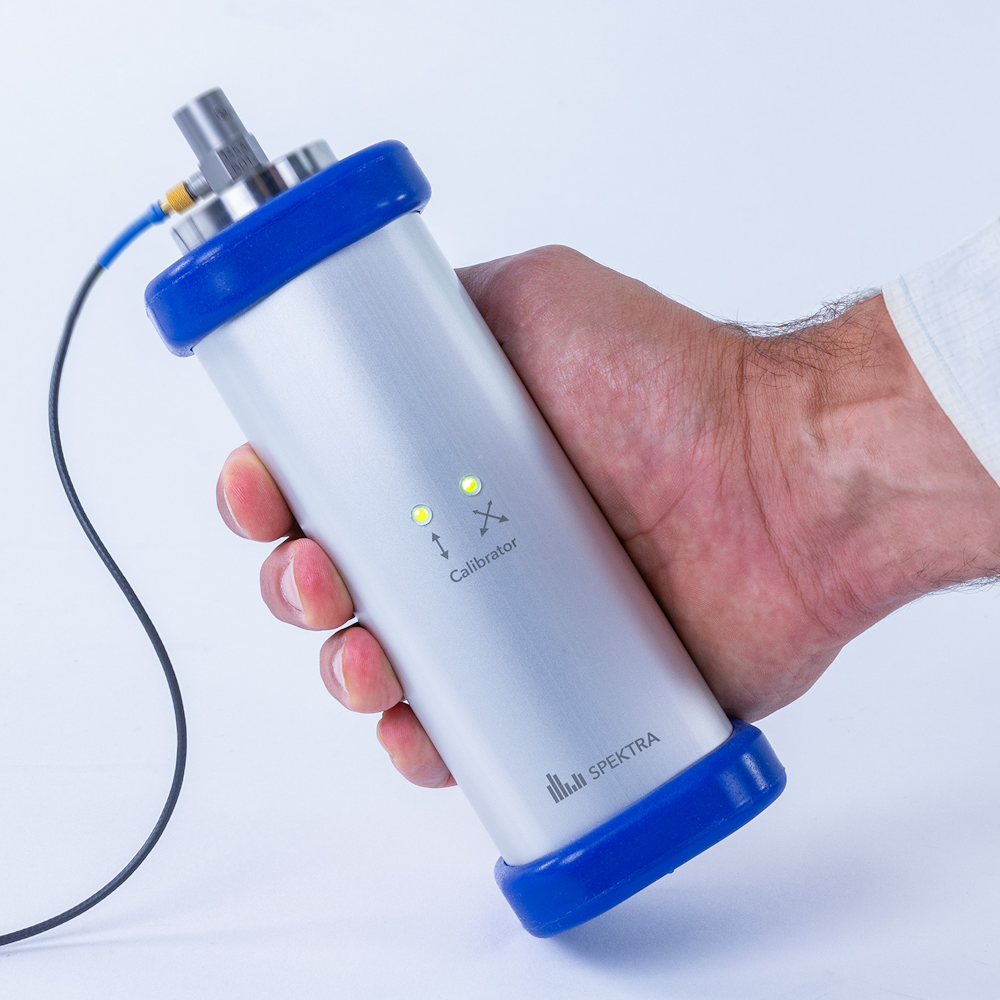

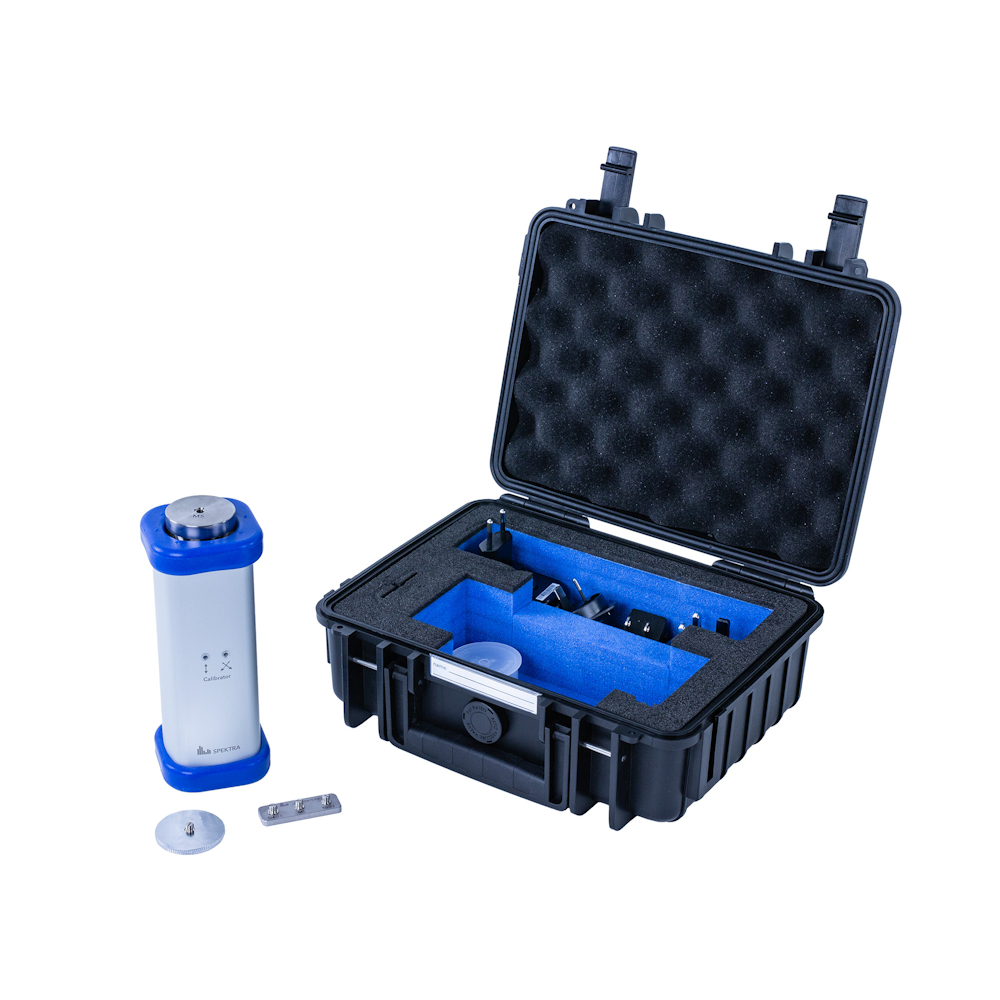

One of the standout features of the CV-05 is its ability to handle a high payload of up to 300 g, allowing for the calibration of larger and heavier sensors that standard hand-held units might struggle with. The device includes a warning LED to alert the user of excessive transverse motion, ensuring the integrity of the calibration signal. Its robust housing and included transportation case make it a reliable partner for daily on-site use, and the included traceable DAkkS calibration certificate (ILAC-MRA) ensures that your verification processes remain fully compliant with international quality standards.
| Feature | Specification |
| Frequencies | 79.58 Hz and 159.15 Hz |
| Acceleration (RMS) | 1; 2; 3; 4; 5; 6; 7; 8; 9; 10 m/s² |
| Max Payload | 300 g |
| Displacement (@ 79.58 Hz) | 4; 8; 12; 16; 20; 24; 28; 32; 36; 40 µm RMS |
| Displacement (@ 159.2 Hz) | 1; 2; 3; 4; 5; 6; 7; 8; 9; 10 µm RMS |
| Operating Time | Up to 12 h (battery-powered) |
| Dimensions (H x W x L) | 168 mm x 65 mm x 65 mm |
| Total Weight | 1.25 kg |
| Protection / Sealing | Rugged housing for on-site use |
