Handheld Acoustic Imaging for Industrial Inspections
Visualize Leaks in Real-Time

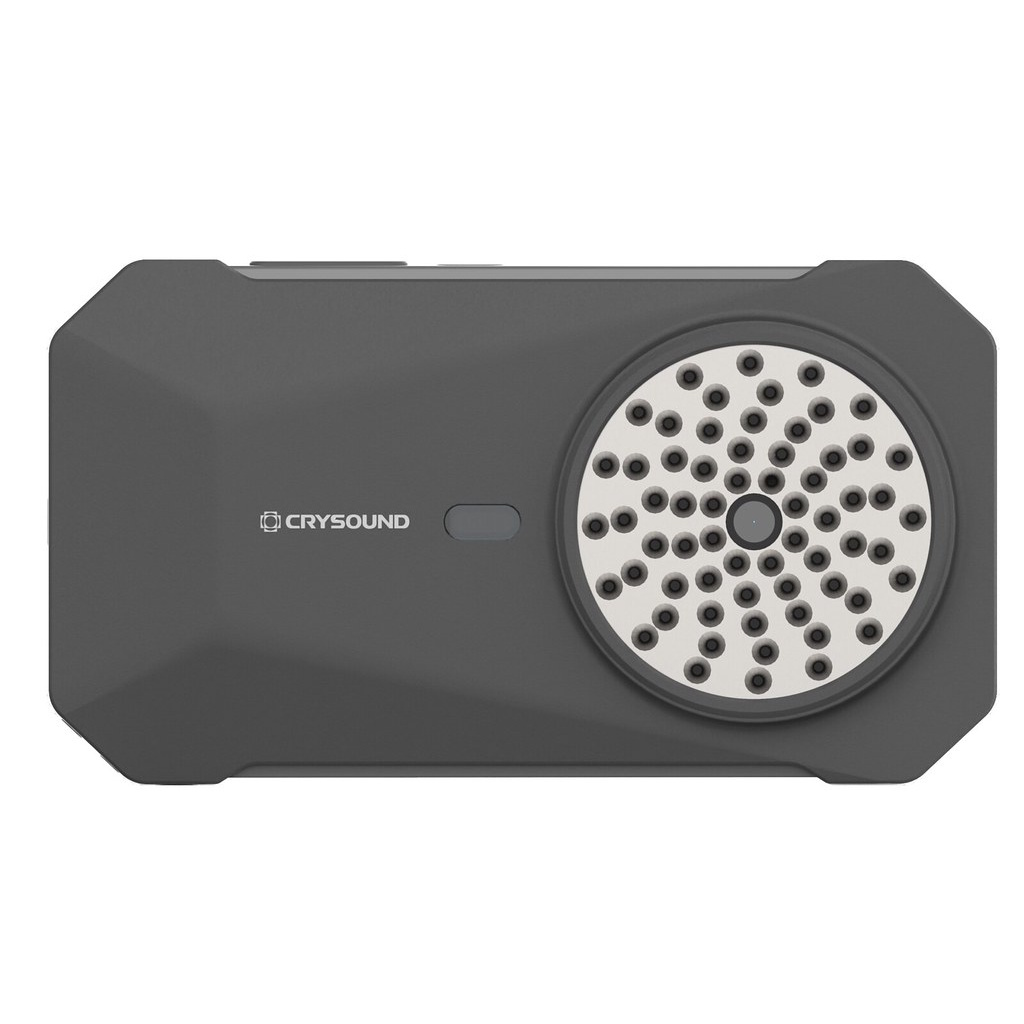

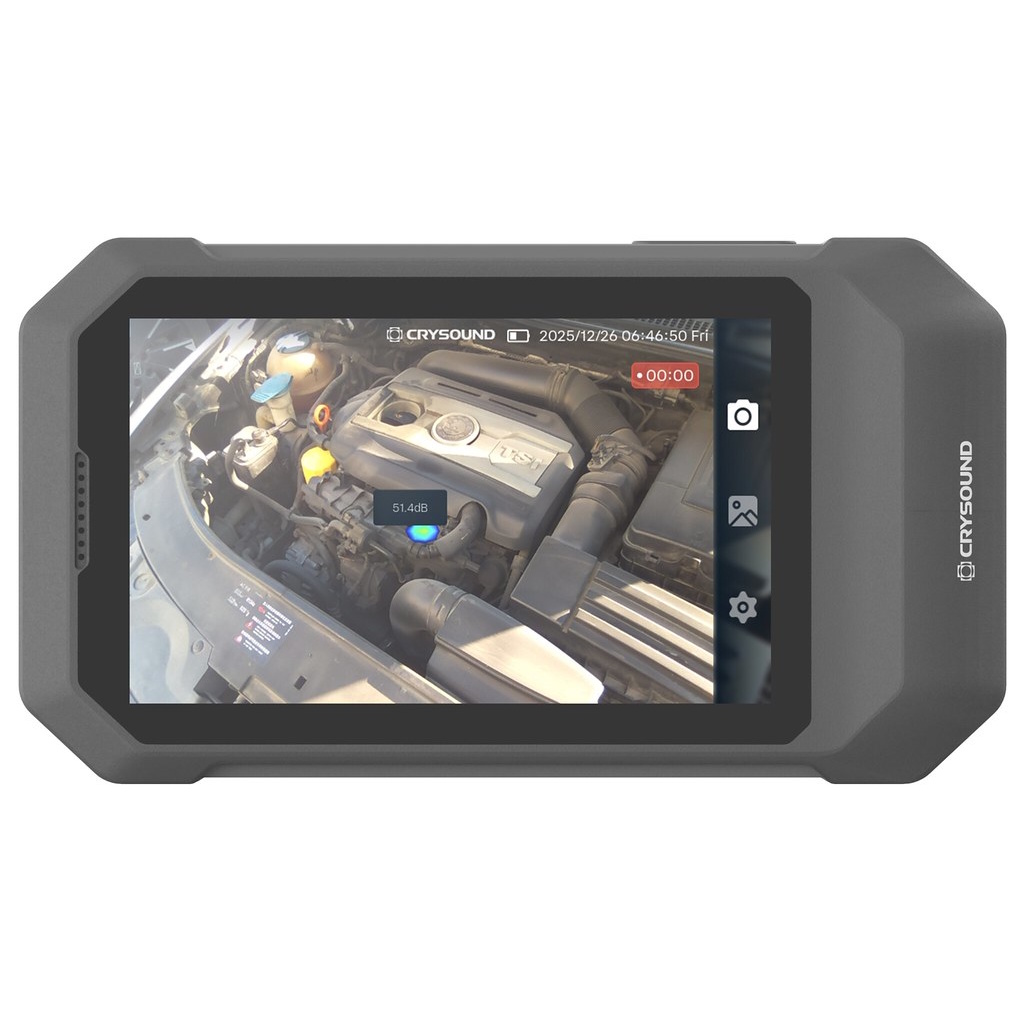

The CRYSOUND POCKET is a high-performance, ultra-portable acoustic imaging camera that helps maintenance teams detect compressed air leaks and partial discharge (No PRPD). By overlaying a live soundmap onto a digital image, it allows technicians to pinpoint sound sources instantly, document findings, and act with total confidence.
The POCKET is a rugged, “one-per-person” solution for fast deployment across any industrial site.
Compressed Air & Gas Leaks
Instantly visualize leaks in compressed air, vacuum, nitrogen, and steam systems, even in high-noise environments.
Partial Discharge (PD) Screening
Safely detect electrical faults in switchgear, insulators, and overhead lines from a distance.
Mechanical Troubleshooting
Identify air loss in HVAC ducting and pinpoint faults in pneumatic control lines.
General Specifications
Microphone Array 64 MEMS Microphones Size 150 × 83 × 27.5 mm
Frequency Range CRY8024: 2 kHz ~ 48 kHz / CRY8025: 2 kHz ~ 65 kHz
Test Distance CRY8024: 0.3 m ~ 60 m / CRY8025: 0.3 m ~ 120 m
Minimum Detectable Leak CRY8024: 0.059 L/min @ 5 bar from 10 m / CRY8025: 0.012 L/min @ 2.7 bar from 10 m
