Hikvision DS-2TP23-10VM/W
Hikvision IR camera
Hikvision IR camera

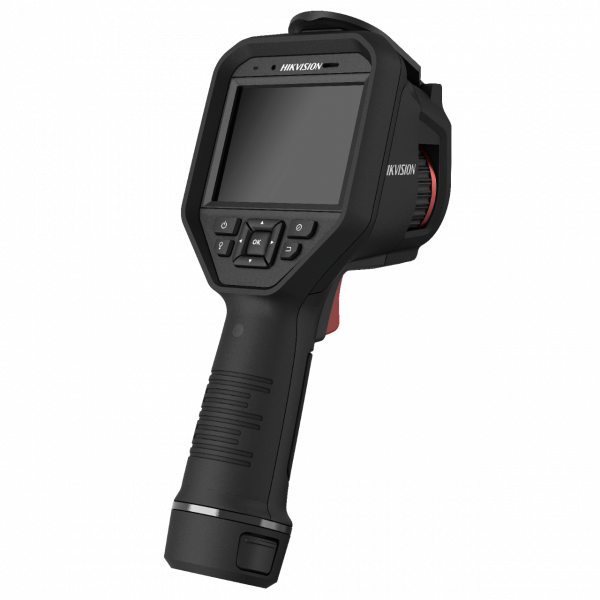

Hikvision DS-2TP23-10VM/W 384×288

The handheld thermography camera, specially designed for temperature measurement in transformer substation. It’s equipped with a 384×288 resolution thermal detector and a 5MP resolution optical light detector. The 3.5-inch touch screen displays picture in picture of optical and thermal view, fusion of both channels. It helps the staff to quickly find the fault according to accurate temperature measurement of high temperature targets in the environment. Meanwhile it provides assistant decision and ensure safety.

Datasheet DS-2TP23-10VMW

Hikvision Thermal Overview

SKU: 100921 Tags: , ,
Add to WishlistRemove from Wishlist
Add to Wishlist

Hikvision DS-2TP23-10VM/W

Thermographic Handheld Camera

  • High sensitivity thermal module with 384 x 288 resolution
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • High quality optical module with 2 MP resolution
  • High-calibre 640 x 480 resolution 3.5” LCD touch display
  • Long-distance laser light supplement for thermography targets
  • LED light supplement makes the device a torch in required scenarios
  • Up to 4 hours continuous operation

Thermal Module

  • Image Sensor Uncooled Focal Plane Arrays
  • NETD< 40mk (@ 25 °C,F#=1.0)
  • Field Of View 37.5° × 28.5 °
  • Aperture F 1.0
  • Pixel Pitch 17μm
  • Focal Length 10 mm (Manual focus)
  • IFOV (Mrad) 1.7mrad
  • Response Waveband 8μm to 14μm
  • Max. Resolution 25Hz: 384 × 288

Thermography

  • Rules Max. Temperature; Min. Temperature; Center Temperature; Custom Point/Line/Area Thermometry
  • Thermometry Range -20 °C to 550 °C (-4 °F to 1022 °F)
  • Thermometry Accuracy Max (±2 °C, ±2%)
