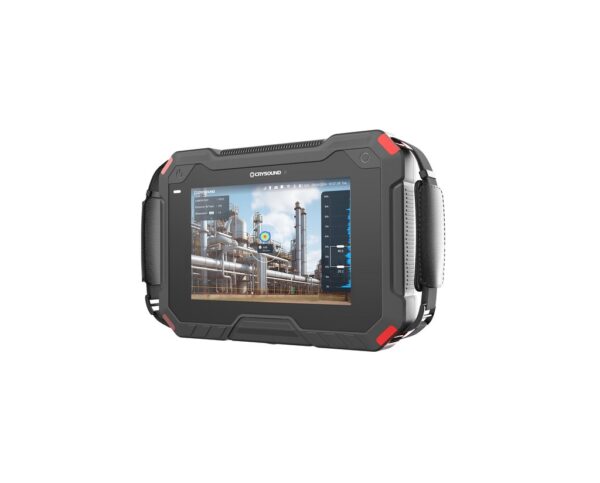

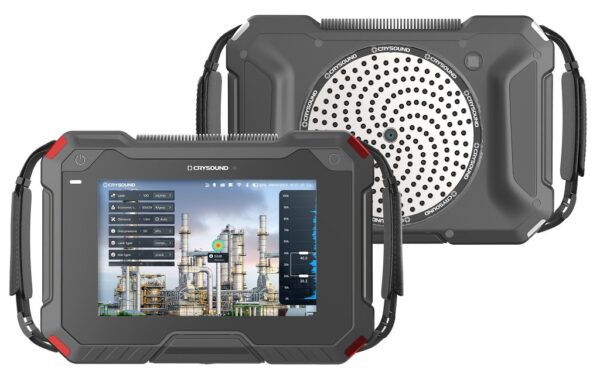

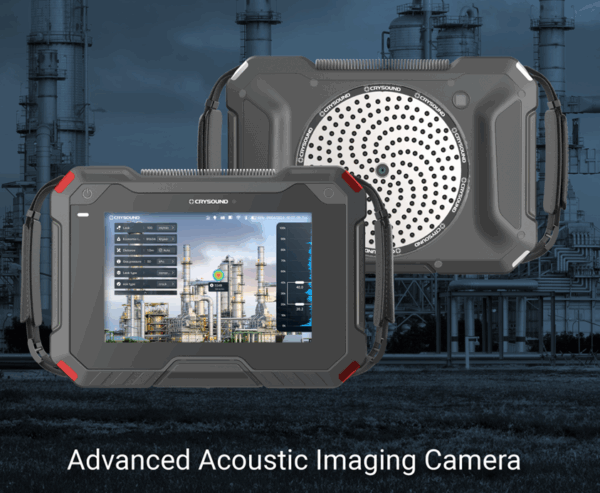

Crysound 8125 Ex Acoustic Imaging Camera
Industry’s First TÜV-Certified Intrinsically Safe Acoustic Imaging Camera
Experience next-level industrial inspections with the CRY8120 Series Acoustic Imaging Camera: leading the way in reliable technology for leak detection, real-time electrical discharge analysis, and thorough mechanical
fault diagnosis.
Raising Performance Standards with Unmatched Precision and Sustainable Innovation
CRYSOUND introduces the new CRY8125 Ex Acoustic Imaging Camera, certified by TÜV and compliant with standards for use in explosive atmospheres. With its advanced capabilities, the CRY8125 redefines industrial inspection by precisely locating leaks, identifying partial electrical discharges, and detecting mechanical wear. The CRY8125 is fully certified under IECEx and ATEX, and compliant with IEC 60079-0 and IEC 60079-11, ensuring safe operation in explosive atmospheres. The integrated workflow of the CRY8125 – from image capture and analysis to report generation – significantly improves the efficiency of gas leak detection, ensuring safer and more reliable daily operations.
Features :
-
Leak detection in explosive gas and dust atmospheres (Zone 2)
-
-
- Ex Marking II 3 G Ex ic IIC T5 Gc II 3 D Ex ic IIIC T100℃ Dc
- IECEx and ATEX certified for detecting gas leaks and partial discharges in explosive environments.
-
-
-
Realtime far-field sound source localization and visualization
-
Leak detection and leak rate for all compressed (nonvolatile) gasses
-
Partial discharge detection and type recognition for insulators and switch gears
-
Mechanical inspection for predictive maintenance for bearings and conveyors
-
Report generation for critical data sharing
Highlights :
-

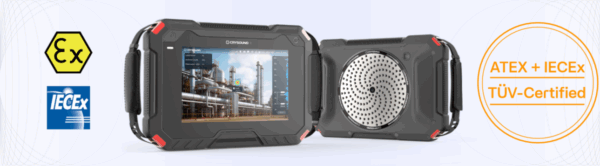

TÜV-Certified Zone 2 IECEx and ATEX Certificate
The CRY8125 is TÜV-certified under IECEx and ATEX and meets IEC 60079-11 and 60079-0 standards. It can be used for gas leak detection in the explosive gas and dust atmospheres.
-
Endure 28-Day Extreme Reliability Testing for the Most Robust Protection
The CRY8125 undergoes 28 days of 90% humidity, 90°C high-temp and -25°C low-temp aging, immediately followed by drop testing. After all these extreme testing, it still maintains an IP54 rating to ensure no ingress of gas or dust.
-
Detection Any Type of Gas in Explosive Atmospheres
The CRY8125 can detect any type of gas leaks – such as natural gas, hydrogen and CO – in explosive atmospheres. It also quantifies leak rates and estimates economic losses in real time, enabling fast analysis and maintenance decision-making.
-
Comprehensive Hardware Configuration
Bluetooth and Wi-Fi enable direct data transmission to local devices. Up to 4 IEPE sensors (accelerometers, microphones, etc.) can be added to the system, enabling complex detection scenarios and allowing for future expansion.
-
8 Inch, 2M Pixel Display for Clear Insights into Problems
The CRY8125 display features 2K resolution, 6x digital zoom, and 600 nits display brightness for accurate viewing of field conditions in full sunlight.
-
Ergonomic Design and Operations
With a weight of only 1.4 Kg, the CRY8125 features a rubber molded grip for safe, single-handed operation.
-
2-year Warranty
CRY8125 is covered by a 2-year limited warranty.
Reporting Software
Real-Time Report Preview and Editing
• The reporting software of the CRY8120 Series enables real-time preview and editing of reports.
• Users can instantly view results as they edit, ensuring consistency with the final exported report.
Comprehensive Off-line Editing Capabilities
• Enjoy full off-line adjustment and editing capabilities with the reporting software.
• Modify recorded parameters such as dynamic range, frequency, and imaging points without the need for an internet connection.
• This feature allows for thorough analysis of recorded images to identify and address issues, whether in the field or in the office.
Effortless Data Import via Wi-Fi
• Seamlessly import data from the acoustic imaging camera to your PC via Wi-Fi.
• When connected to the same network, the reporting software accesses stored images and videos.
• Users can select desired media in the preview window and import them to the PC with a simple click to generate detailed reports.

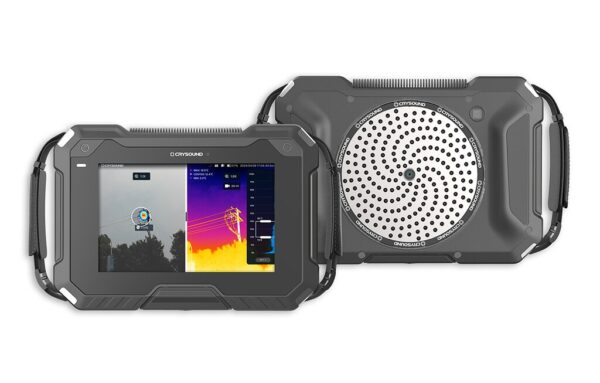

Multimode Display of Acoustic and Thermal Images
• Experience enhanced insights with the optional thermal camera module available with the acoustic imaging camera.
• The software displays and reports both acoustic and thermal parameters on a single interface, providing a multidimensional view of the inspection data.
