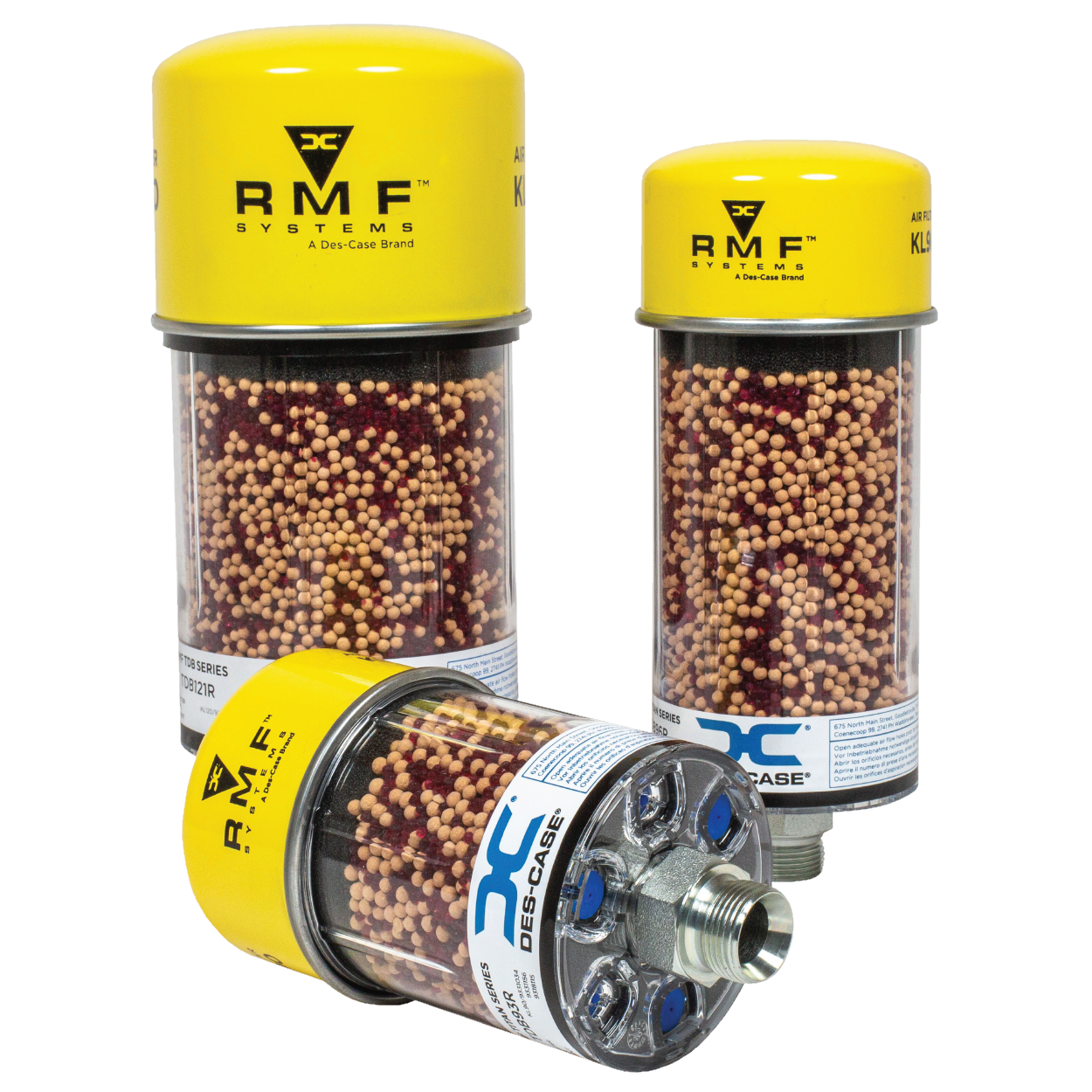

The RMF Systems TDB Series is designed to provide maximum protection for machines working in extreme conditions. These heavy-duty desiccant breathers are perfect for industrial equipment that faces high levels of dirt, moisture, and vibration.
Unique Splash Guard Technology
What makes the TDB series special is the integrated splash guard built into the standpipe. This clever feature prevents oil mist from reaching the desiccant material. By keeping oil away from the ZR Gel, the breather can focus entirely on removing moisture from the air without getting clogged. This ensures a steady airflow and a much longer life for your filter.
Reliable and Fully Serviceable
Like other RMF breathers, the TDB series is fully serviceable. You can easily replace the ZR Gel and the spin-on filter cap when they are full. We also offer models with optional check valves. These valves isolate the system and only allow it to “breathe” when necessary, which stops the gel from becoming saturated too early in humid environments.
Key Benefits:
- 3-Micron Filtration: Stops tiny dust particles from entering your oil.
- ZR Gel Technology: Effectively removes water to prevent rust and oil breakdown.
- High Flow Rates: Available in models (93, 96, and 121) that handle up to 1,500 l/min.
RMF TDB ZR gel
93 Series
Amount of ZR Gel 0.6 lbs (250 g)
Adsorption Capacity 3.0 fl oz (94 ml)
96 Series
Amount of ZR Gel 1.0 lbs 460 g)
Adsorption Capacity 5.5 fl oz (172 g)
121 Series
Amount of ZR Gel 1.8 lbs (800 g)
Adsorption Capacity 10 fl oz (300 g)

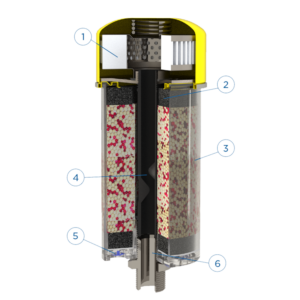

TDB Air Breather Features
1. Spin-On Filter Cap
A spin-on filter cap provides increased dirt holding capacity and removes airborne contamination to 3-micron absolute.
2. Foam Pad
Foam filter captures any oil mist and disperses incoming air evenly over filtration and drying areas.
3. External Ribs
External ribs on shell to create greater durability and grip when installing or replacing breather.
4. Splash Guard
Glass filled nylon standpipe with incorporated splash guard for increased durability and chemical compatibility, while protecting desiccant from oil mist and splashing.
5. Optional Check Valves
High quality check valves that won’t clog or stick are located underneath the unit for added protection from washdown environments. Check-valves isolate equipment from ambient conditions prolonging breather life and protecting system integrity.
6. Threaded Mounting
Internal threads provide durability and stability and can be used with one of several adapter options.
