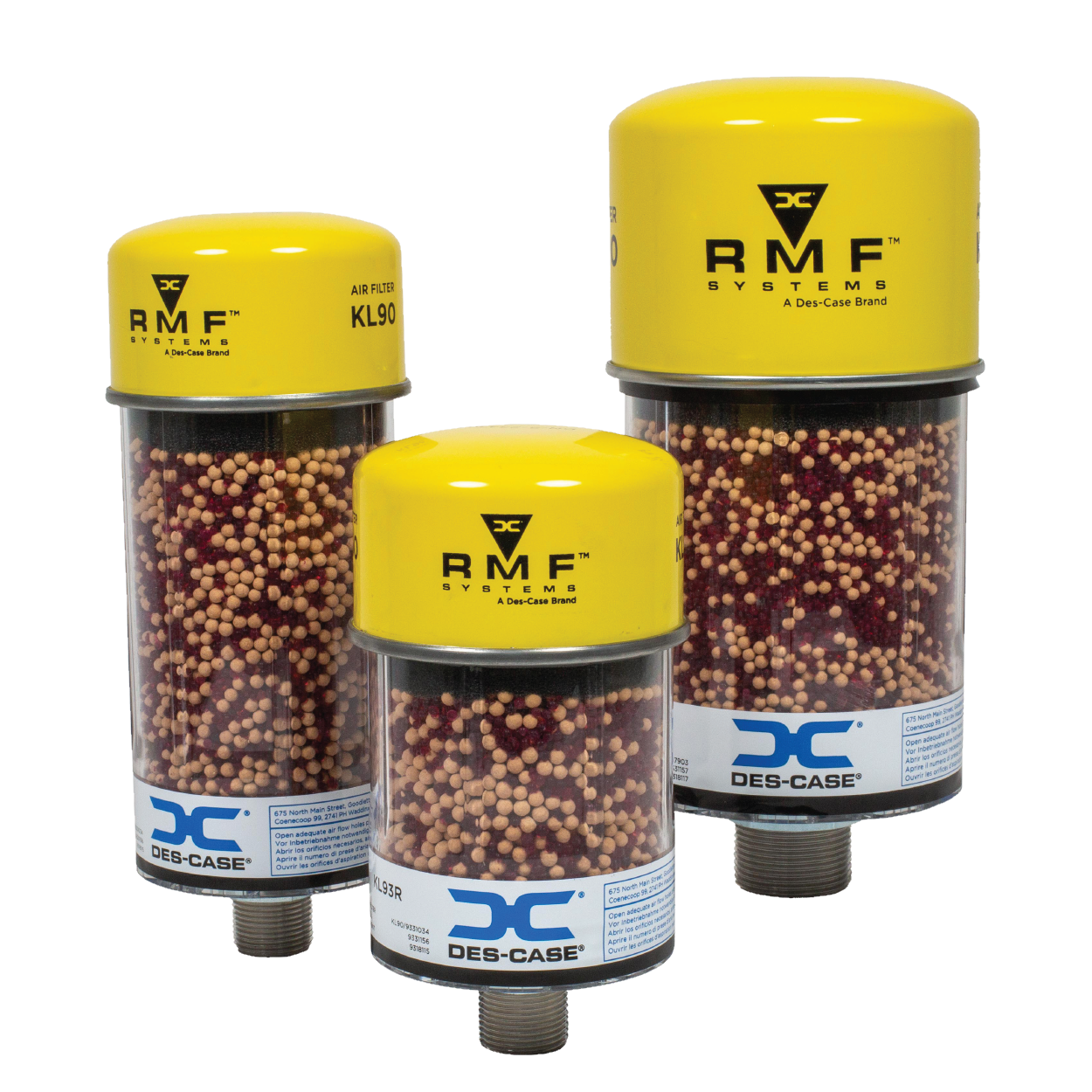

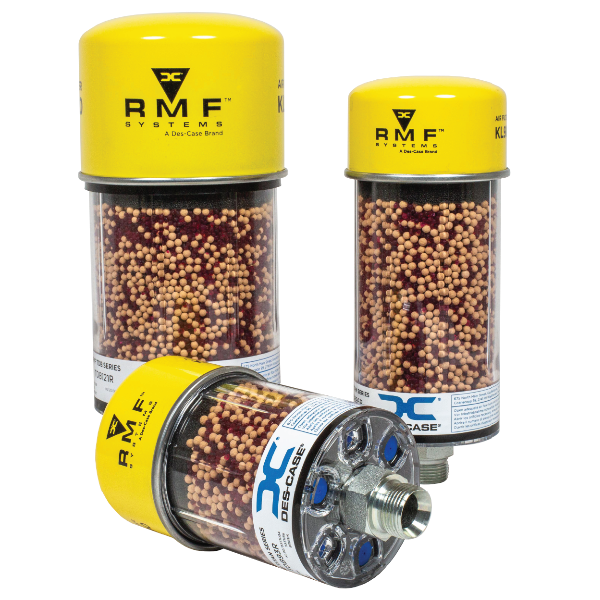

The RMF Systems KL Series provides robust desiccant breathing solutions, featuring a durable steel standpipe for high-vibration environments, 3-micron absolute filtration, and ZR Gel moisture removal. These fully serviceable, heavy-duty units (93, 96, and 121 series) offer optional check valves to extend life and optimize flow rates up to 1500 l/min.
93 Series
Amount of ZR Gel 0.66 lbs (300 g)
Adsorption Capacity 2.8 fl oz (86 ml)
96 Series
Amount of ZR Gel 1.32 lbs (600 g)
Adsorption Capacity 5.5 fl oz (172 ml)
121 Series
Amount of ZR Gel 2.20 lbs (1000 g)
Adsorption Capacity 9.3 fl oz (288 ml)

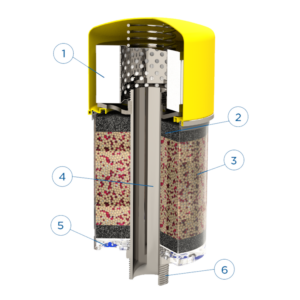

1. Spin-On Filter Cap
A spin-on filter cap provides increased dirt holding capacity and removes airborne contamination to 3-micron absolute.
2. Foam Pad
Foam filter captures any oil mist and disperses incoming air evenly over filtration and drying areas.
3. External Ribs
External ribs on shell to create greater durability and grip when installing or replacing breather.
4. Stainless Steel Standpipe
Stainless steel standpipe provides high vibration resistance and durability.
5. Optional Check Valves
High quality check valves that won’t clog or stick are located underneath the unit for added protection from washdown environments. Check-valves isolate equipment from ambient conditions prolonging breather life and protecting system integrity.
6. Threaded Mounting
Easily replaces standard filler/breather cap or can be used with one of several adapters.
