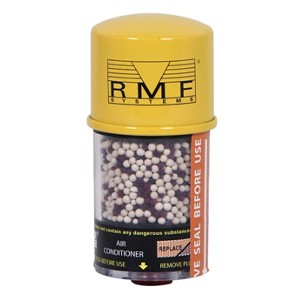

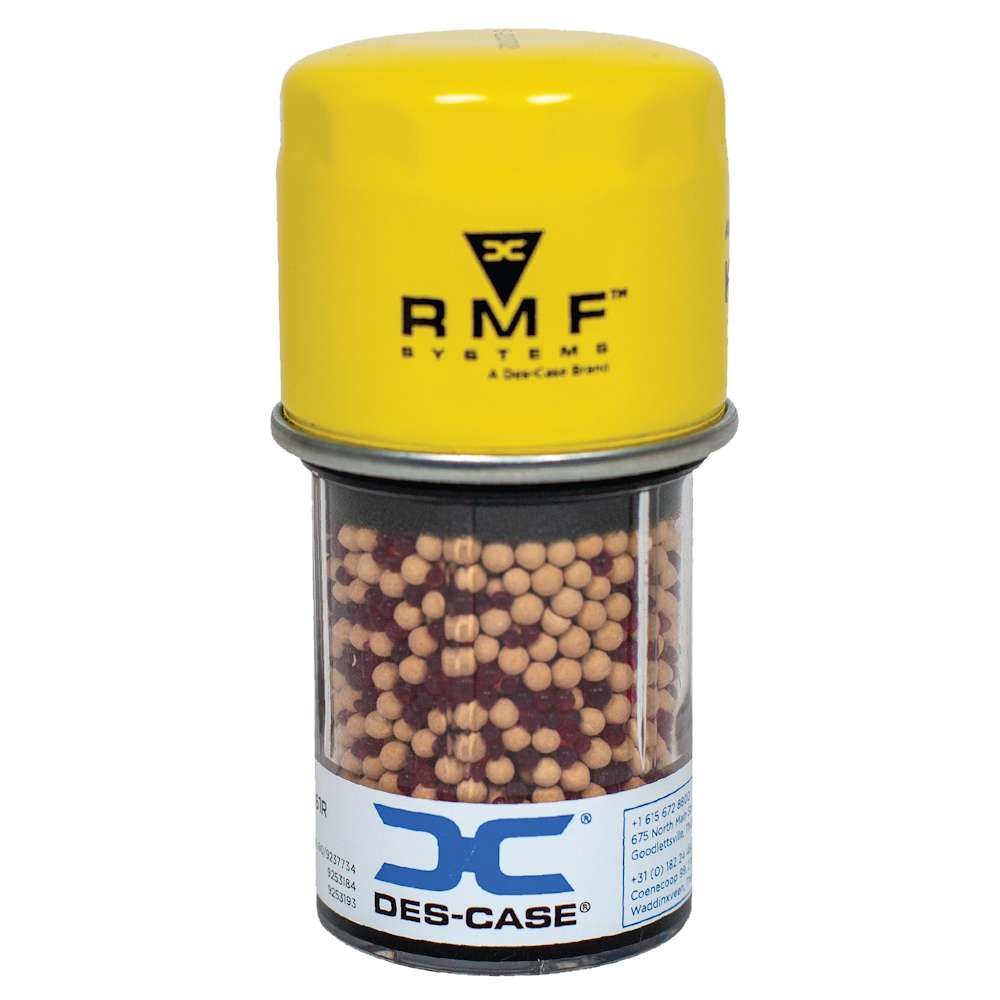

The RMF Systems ACM Series offers durable, lightweight, and fully serviceable breathers designed for mobile, hydraulic, and industrial applications. Featuring 3μ absolute filtration and optional check valves to prevent premature silica gel saturation, these units protect equipment in harsh environments.

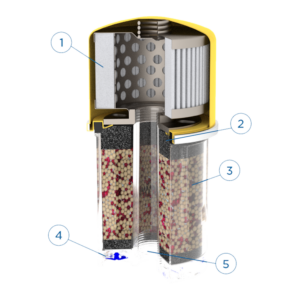

1. Spin-On Filter Cap
A spin-on filter cap provides increased dirt holding capacity and removes airborne contamination to 3-micron absolute.
2. Foam Pad
Foam filter captures any oil mist and disperses incoming air evenly over filtration and drying areas.
3. External Ribs
External ribs on shell to create greater durability and grip when installing or replacing breather.
4. Optional Check Valves
High quality check valves that won’t clog or stick are located underneath the unit for added protection from washdown environments. Check-valves isolate equipment from ambient conditions prolonging breather life and protecting system integrity.
5. Threaded Mounting
Internal threads provide durability and stability and can be used with an adapter.
The ACM part code ACM61R now reflects the ACM without check valves. We added the ACM61RV part code to represent the ACM with check valves.
