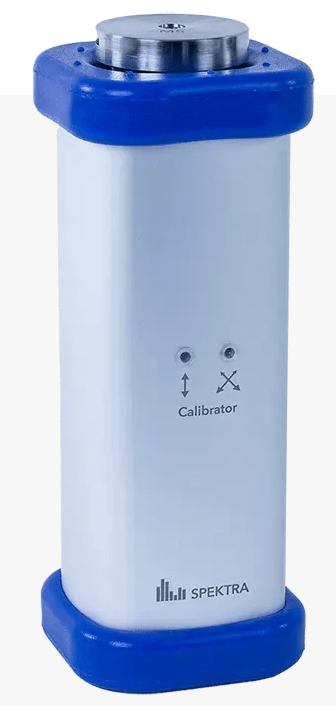

Portable Vibration Calibrator CV-05

The hand-held CV-05 vibration calibrator solves the problem of uncertain and inaccurate on-site measurements. It enables precise, ISO 8041-compliant testing of vibration sensors, offers intuitive operation and comes with a DAkkS calibration certificate. Robust and compact in a protective case – for reliable results and safe compliance with standards everywhere.

Selected Date :

✓ 79.58 Hz and 159.15 Hz
✓ various amplitudes can be set
(acceleration, velocity, displacement)
✓ maximum payload: 300 g
✓ up to 12 h of continuous operation

Features :

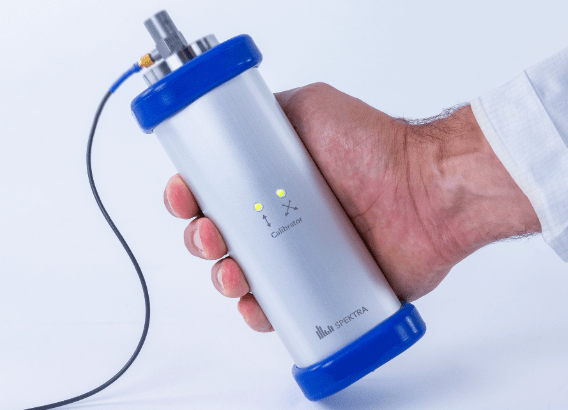

✓hand-held vibration calibrator
✓ integrated reference sensor
✓ warning LED for high transverse motion
✓ big vibration table for heavy DUT
✓ simple user interface
✓ rugged housing for maximum reliability

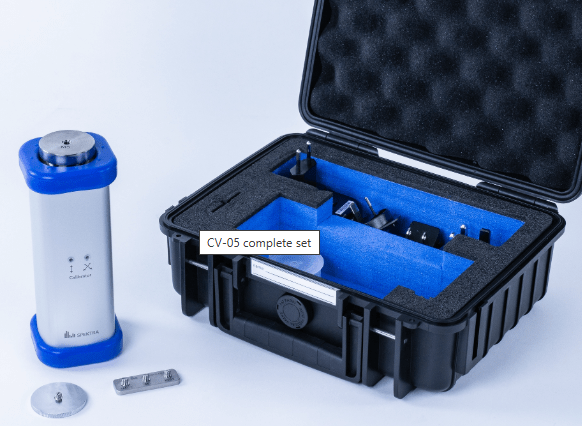

✓ transportation case and standard mounting
adapter set included
✓ calibration certificate according to
DAkkS standard included
(corresponds to ILAC-MRA)



SKU: portable-vibration-calibrator-cv-05 Category: Tags: , ,
Add to WishlistRemove from Wishlist
Add to Wishlist

Hand-held vibration calibrator CV-05
Precise. Handy. Robust.
Testing vibration sensors and measuring chains.

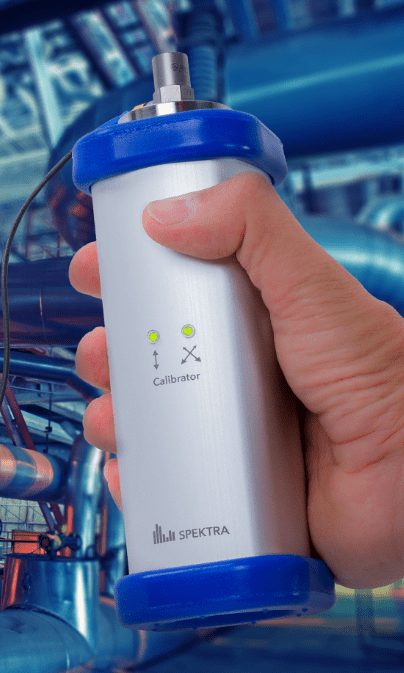

Thanks to its technical details and compact design, the CV-05 is irreplaceable for in-situ testing of human vibration measuring devices in accordance with ISO 8041. As a hand-held vibration calibrator, it is the perfect instrument for testing measuring chains on industrial plants, for example.

Features such as the large sensor coupling surface, the internal triaxial reference sensor and the robust housing characterise this hand-held calibrator, as do the user-friendly handling and the visual warning if the transverse vibrations are too high.

Each CV-05 is calibrated before delivery and receives an internationally recognised DAkkS calibration certificate.

Reliable sensor checks everywhere!

  • On-site inspections of human vibration measuring devices according to ISO 8041
  • Inspection of sensor cabling in vibration tests
  • Troubleshooting on machine vibration measuring chains

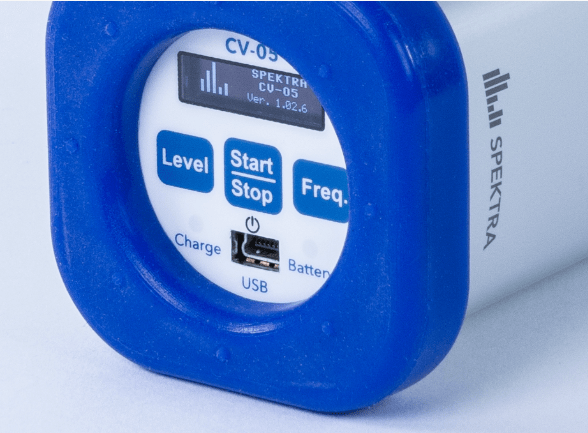

‘Clever testing’ – realised in a portable, high-quality measuring device for a wide range of applications. Users can select amplitudes between 1 m/s² and 10 m/s² depending on the selected frequency (80 Hz / 160 Hz). Independent of an on-site power source, the power supply is ensured by an integrated rechargeable battery. Thanks to its compact dimensions and low weight, it can be used for up to 12 hours on the move. Simple operation via three buttons and the OLED display as well as charging via a USB cable emphasise the established user-friendliness of SPEKTRA products.

Functional testing of various measuring devices

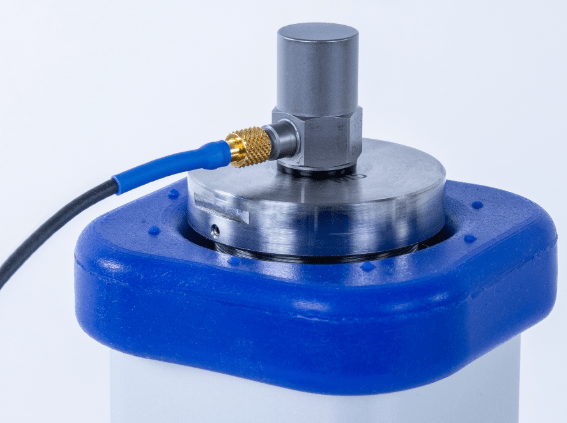

The balanced ratio between the housing, which serves as a reaction mass, and the mass of the test specimen allows sensors weighing up to 300 g to be tested reliably. An M5 thread allows sensors to be mounted quickly and easily on the coupling surface. The standard adapters that are included in delivery can be used for a wide range of different test specimens and for efficient testing. We also offer a number of other threaded and adhesive adapters as an option.

Facts & Figures

  • Frequency: 79.58 Hz / 159.15 Hz
  • Acceleration: 1; 2; 3; 4; 5; 6; 7; 8; 9; 10 (m/s² RMS)
  • Vibration displacement (μm RMS):
    4; 8; 12; 16; 20; 24; 28; 32; 36; 40 (@ 79.58 Hz)
    1; 2; 3; 4; 5; 6; 7; 8; 9; 10 (@ 159.2 Hz)
  • DUT mass, max.: 300 g (0.66 lbs) / 200 g (0.44 lbs) – depending on frequency
  • Temperature range: -10 °C…+50 °C (+14 °F…+122 °F)
  • Dimensions (H×W×L): 168 mm × 65 mm × 65 mm (6.6 in × 2.6 in × 2.6 in)
  • Weight: 1.25 kg (2.8 lbs)
  • Sensor mounting: M5 × 6 mm threaded hole
  • Power supply: NiMH battery; 7.2 V / 2.2 Ah (battery operating time up to 12 h)
