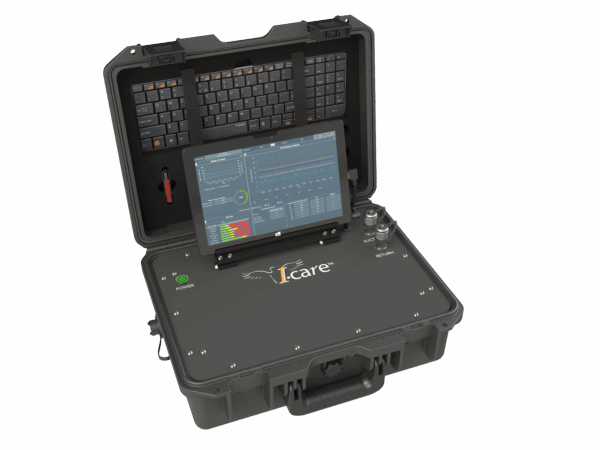

DIGITAL IMAGING PORTABLE PARTICLE COUNTER – PARTICLE PAL PRO V3

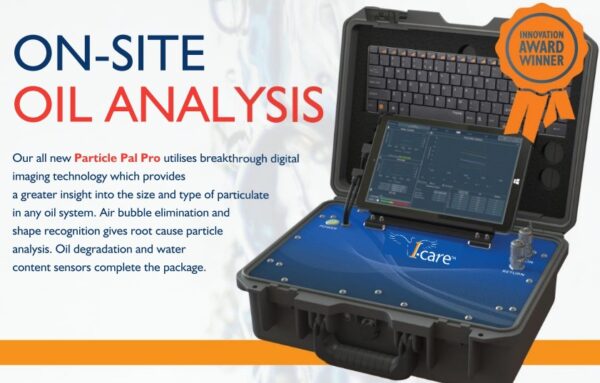

Our all new Particle Pal Pro uses breakthrough digital imaging technology which provides a greater insight into the size and type of particulate in any oil system. Air bubble elimination and shape recognition gives root cause particle analysis. Oil degradation and water content sensors compete the package.
Features :

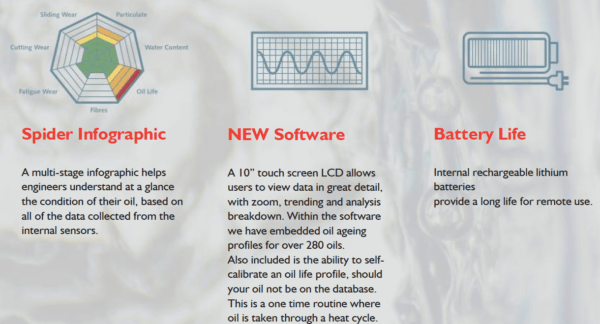

- Built in Windows tablet based device with advanced software for in depth analysis of results. Wifi, Bluetooth and USB connections
- Mouse and keyboard for tablet control
- Captures images of oil showing contaminants, air and water droplets
- Tests stored on hard drive allow for hundreds of hours of tests, averaging and trending options
- Built in reporting tools for exporting data in preformatted PDF’s and CSV files via tablet’s USB port
- Asset management system for storing tests and trending results over time, each asset has its own folder where results are stored
- Up to 6 hours run time, 87Wh battery
- 12kg weight
- Oil life sensor options
Particle Pal Pro Advanced Oil Analysis – TECHNICAL INFORMATION
- Fluid Compatibility : Synthetic oils, organic oils, mineral oils & diesel fuel (2,400 cSt viscosity limit)
- Display Information :
Particulate: ISO 4406, SAE AS4059 & NAS 1638, bubble elimination and particle wear analysis.

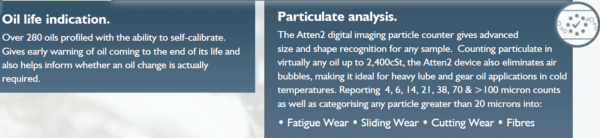

Oil condition: utilises Tan Delta’s oil life sensor to determine the remaining life of any oil profiled.

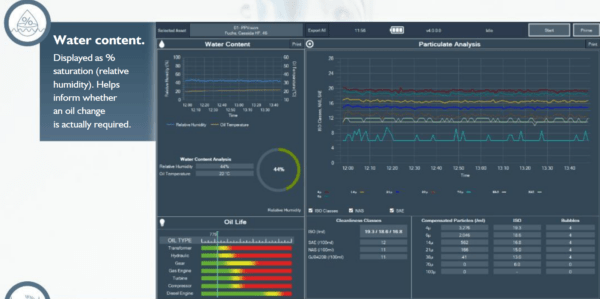

Water sensing: water is displayed as relative humidity (RH) % saturation.
- Modes of Operation : High pressure live system sampling (up to 350 bar) – via a high pressure adaptor. Bottle sampling and tank sampling.
- Data : All data stored locally with an option to export to CSV or PDF
Harnessing the power of proven digital imaging technology with added oil degradation and water sensing technology

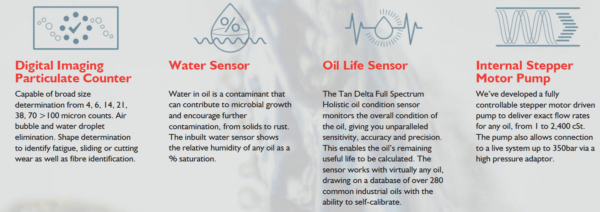

We’ve embedded the latest in particle counting technology along with a viscosity sensor into our new Particle Pal Pro series. Giving ISO 4406 count as well as 4, 6, 14, 21, 38, 70 & >100 micron sizing and bubble elimination. Digital imaging, combined with advanced algorithms, sorts particles into fatigue wear, cutting wear and sliding wear categories to give root cause analysis. This powerful technology, when coupled with additional sensors for measuring water content and oil life, gives unprecedented, on-the-spot insight into the condition of your oil.
Different models and options are available :
Particle Pal Pro (V3): Picture
Cleanliness readings to ISO 4406, NAS 1638 and SAE AS4059. Atten2 Digital Imaging Counter Technology Reporting 4, 6, 14, 21, 38, 70 Micron sizes, ISO codes & counts per mL. Bubble and water droplet elimination from ISO counts. Particle shape recognition and counts per mL: Fatigue Wear, Sliding Wear, Cutting Wear &
Fibres. High viscosity pump allowing oils up to 2,400cst. Windows Tablet platform software. Supplied in a flight case dimensions (w)411 mm x (d)322 mm x (h)170 mm
Particle Pal Pro (V3): Picture& Water
Cleanliness readings to ISO 4406, NAS 1638 and SAE AS4059. Atten2 Digital Imaging Counter Technology Reporting 4, 6, 14, 21, 38, 70 Micron size ISO codes & counts per mL. Bubble and water droplet elimination from ISO counts. Particle shape recognition and counts per mL: Fatigue Wear, Sliding Wear, Cutting Wear & Fibres. High viscosity pump allowing oils up to 2,400 cst. Windows Tablet platform software. Water content displayed as % RH. Supplied in a flight case dimensions (w)411 mm x (d)322 mm x (h)170 mm
Particle Pal Pro (V3): Picture of Health
Cleanliness readings to ISO 4406, NAS 1638 and SAE AS4059. Atten2 Digital Imaging Counter Technology Reporting 4, 6, 14, 21, 38, 70 &100+ Micron size ISO codes & counts per mL. Bubble and water droplet elimination from ISO counts. Particle shape recognition and counts per mL: Fatigue Wear, Sliding Wear, Cutting Wear & Fibres. High viscosity pump allowing oils up to 2,400 cst. Windows Tablet platform software. Oil Life displayed % of oil life used. Library of over 200 oils profiled, self-calibration option. Water content displayed as % RH. Supplied in a flight case dimensions (w)411 mm x (d)322 mm x (h)170 mm
Particle Pal Pro (V3): Particles, Water, Viscosity and Oil Life

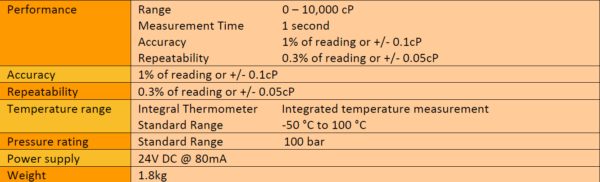

Cleanliness readings to ISO 4406, NAS 1638 and SAE AS4059. Atten2 Digital Imaging Counter Technology Reporting 4, 6, 14, 21, 38, 70 Micron size ISO codes & counts per mL. Bubble and water droplet elimination from ISO counts. Particle shape recognition and counts per mL: Fatigue Wear, Sliding Wear, Cutting Wear & Fibres. High viscosity pump allowing oils up to 2,400 cst. Windows Tablet platform software. Oil Life displayed % of oil life used. Library of over 200 oils profiled, self-calibration option. Water content displayed as % RH. Viscosity: Resonant/Vibration viscometer: 0 – 2,400cP. Repeatability: 0.3% of reading or +/- 0.05cP.
Accuracy: 1% of reading or +/- 0.1cP. Supplied in a flight case dimensions (w)411 mm x (d)322 mm x (h)170 mm
