DIGITAL IMAGING PORTABLE PARTICLE COUNTER – PARTICLE PAL PLUS V4

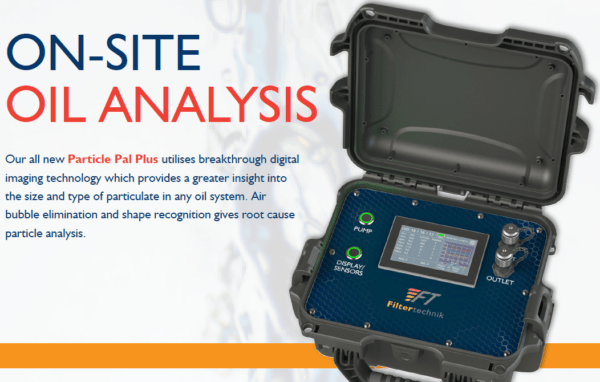

Our all new Particle Pal Plus uses breakthrough digital imaging technology which provides a greater insight into the size and type of particulate in any oil system. Air bubble elimination and shape recognition gives root cause particle analysis.
Particle Pal Pro Advanced Oil Analysis – TECHNICAL INFORMATION
- Fluid Compatibility : Synthetic oils, organic oils, mineral oils & diesel fuel (320cSt viscosity limit)

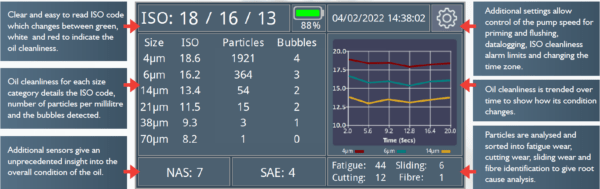

- Display Information : Particulate: ISO 4406, SAE AS4059 & NAS 1638, bubble elimination and particle wear analysis.
- Modes of Operation : High pressure live system sampling (up to 350 bar) – via a high pressure adaptor. Bottle sampling and tank sampling.
- Data : All data stored locally with an option to export to CSV or PDF
Harnessing the power of proven digital imaging technology

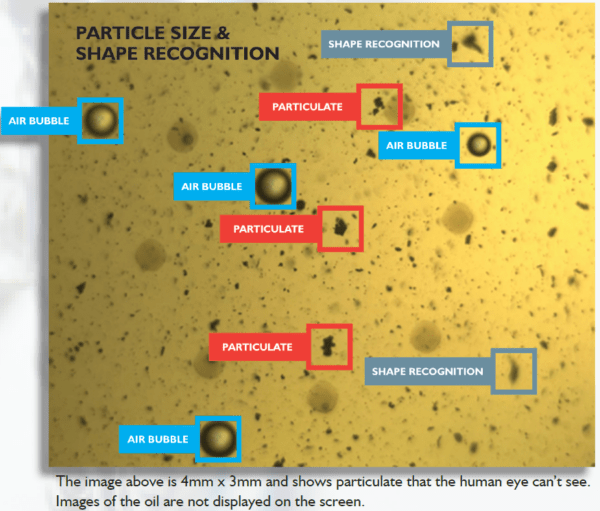

We’ve embedded the latest in particle counting technology along into our new Particle Pal Plus series. Giving ISO 4406 counts as well as 4, 6, 14, 21, 38 & 70 micron sizing and bubble elimination. Digital imaging, combined with advanced algorithms, sorts particles into fatigue wear, cutting wear and sliding wear categories to give root cause analysis. This powerful technology gives unprecedented, on-the-spot insight into the condition of your oil.
Different models and options are available :
Particle Pal Plus (V4): Particles only
Cleanliness readings to ISO 4406, NAS 1638 and SAE AS4059. Atten2 Digital Imaging Counter Technology Reporting 4, 6, 14, 21, 38, & 70 Micron sizes, ISO codes & counts per mL. Bubble and water droplet elimination from ISO counts. Particle shape recognition and counts per mL: Fatigue Wear, Sliding Wear, Cutting Wear & Fibres. 4.3” LCD touch screen with USB data transfer to analysis software. QR code reporting tool included. Pump suitable for oils up to 320cst. Supplied in a small flight case 314mm(w) x 257mm(d) x 152mm(h)

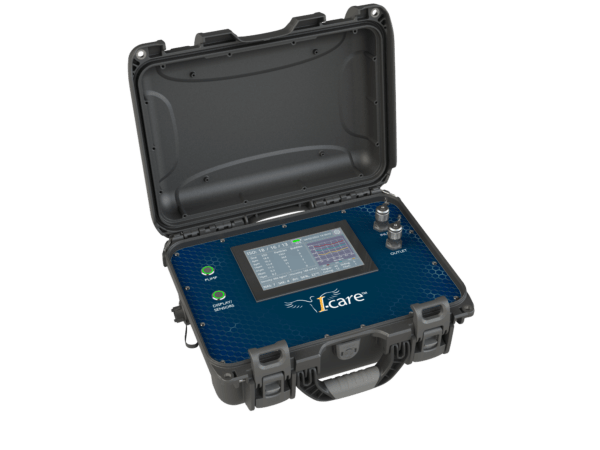

Particle Pal Plus (V4): Particles & High Viscosity Pump
Cleanliness readings to ISO 4406, NAS 1638 and SAE AS4059. Atten2 Digital Imaging Counter Technology Reporting 4, 6, 14, 21, 38, & 70 Micron sizes, ISO codes & counts per mL. Bubble and water droplet elimination from ISO counts. Particle shape recognition and counts per mL: Fatigue Wear, Sliding Wear, Cutting Wear &
Fibres. 7” LCD touch screen with USB data transfer to analysis software. QR code reporting tool included. Pump suitable for oils up to 2,400cst. Supplied in a larger flight case 398mm(w) x 310mm(d) x 172mm(h)
Particle Pal Plus (V4): Particles & Water %RH
Cleanliness readings to ISO 4406, NAS 1638 and SAE AS4059. Atten2 Digital Imaging Counter Technology Reporting 4, 6, 14, 21, 38, 70 Micron size ISO codes & counts per mL. Bubble and water droplet elimination from ISO counts. Particle shape recognition and counts per mL: Fatigue Wear, Sliding Wear, Cutting Wear & Fibres. Water content displayed as % RH LCD touch screen with USB data transfer to analysis software. Pump suitable for oils up to 320cst. 4.3” LCD touch screen with USB data transfer to analysis software. QR code reporting tool included. Supplied in a small flight case 314mm(w) x 257mm(d) x 152mm(h)
Particle Pal Plus (V4): Particles & Water PPM
Cleanliness readings to ISO 4406, NAS 1638 and SAE AS4059. Atten2 Digital Imaging Counter Technology Reporting 4, 6, 14, 21, 38, 70 Micron size ISO codes & counts per mL. Bubble and water droplet elimination from ISO counts. Particle shape recognition and counts per mL: Fatigue Wear, Sliding Wear, Cutting Wear & Fibres. Water content displayed as PPM. Pump suitable for oils/fuels up to 320cst. 4.3” LCD touch screen with USB data transfer to analysis software. QR code reporting tool included. Supplied in a small flight case 314mm(w) x 257mm(d) x 152mm(h)
Particle Pal Plus (V4): Particles, Water & High Viscosity Pump
Cleanliness readings to ISO 4406, NAS 1638 and SAE AS4059. Atten2 Digital Imaging Counter Technology Reporting 4, 6, 14, 21, 38, 70 Micron size ISO codes & counts per mL Bubble and water droplet elimination from ISO counts. Particle shape recognition and counts per mL: Fatigue Wear, Sliding Wear, Cutting Wear & Fibres Water content displayed as % RH. High viscosity pump for fluids up to 2400cst. 7” LCD touch screen with USB data transfer to analysis software. QR code reporting tool included. Supplied in a larger flight case 398mm(w) x 310mm(d) x 172mm(h)
Particle Pal Plus (V4): Particles, PPM & Density
Cleanliness readings to ISO 4406, NAS 1638 and SAE AS4059. Atten2 Digital Imaging Counter Technology Reporting 4, 6, 14, 21, 38, 70 Micron size ISO codes & counts per mL. Bubble and water droplet elimination from ISO counts. Particle shape recognition and counts per mL: Fatigue Wear, Sliding Wear, Cutting Wear & Fibres Water content displayed as PPM. Pump suitable for oils up to 320cst, Includes Density (displaying KG/L). 7” LCD touch screen with USB data transfer to analysis software. QR code reporting tool included. Supplied in a larger flight case 398mm(w) x 310mm(d) x 172mm(h)
Particle Pal Plus (V4): Particles, Water, Viscosity, Density &High Viscosity Pump
Cleanliness readings to ISO 4406, NAS 1638 and SAE AS4059. Atten2 Digital Imaging Counter Technology Reporting 4, 6, 14, 21, 38 & 70 Micron size ISO codes & counts per mL. Bubble and water droplet elimination from ISO counts. Particle shape recognition and counts per mL: Fatigue Wear, Sliding Wear, Cutting Wear & Fibres. Water content displayed as % RH, Viscosity and Density. High viscosity pump for fluids up to 2400cst. 7” LCD touch screen with USB data transfer to analysis software. QR code reporting tool included. Supplied in a larger flight case 398mm(w) x 310mm(d) x 172mm(h)
Particle Pal Plus (V4): Particles (Phosphate Esters & Mineral Oils)
Cleanliness readings to ISO 4406, NAS 1638 and SAE AS4059. Atten2 Digital Imaging Counter Technology Reporting 4, 6, 14, 21, 38, 70 Micron size ISO codes & counts per mL. Bubble and water droplet elimination from ISO counts. Particle shape recognition and counts per mL: Fatigue Wear, Sliding Wear, Cutting Wear & Fibres. Unit complete with FFKM seals for use with phosphate esters & Mineral Oils. 4.3” LCD touch screen with USB data transfer to analysis software. QR code reporting tool included. Pump suitable for oils up to 320cst. Supplied in a small flight case 314mm(w) x 257mm(d) x 152mm(h)le
Particle Pal Plus (V4): Particles & %RH (Phosphate Esters & Mineral Oils)
Cleanliness readings to ISO 4406, NAS 1638 and SAE AS4059. Atten2 Digital Imaging Counter Technology Reporting 4, 6, 14, 21, 38, 70 Micron size ISO codes & counts per mL. Bubble and water droplet elimination from ISO counts. Particle shape recognition and counts per mL: Fatigue Wear, Sliding Wear, Cutting Wear & Fibres. Water content displayed as % RH. Unit complete with FFKM seals for use with Phosphate Esters & Mineral Oils. 4.3” LCD touch screen with USB transfer to analysis software. QR code reporting tool included. Pump suitable for oils up to 320cst. Supplied in a small flight case 314mm(w) x 257mm(d) x 152mm(h)
